A-frame rack for joinery FAF2100

General

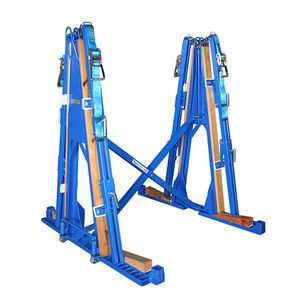

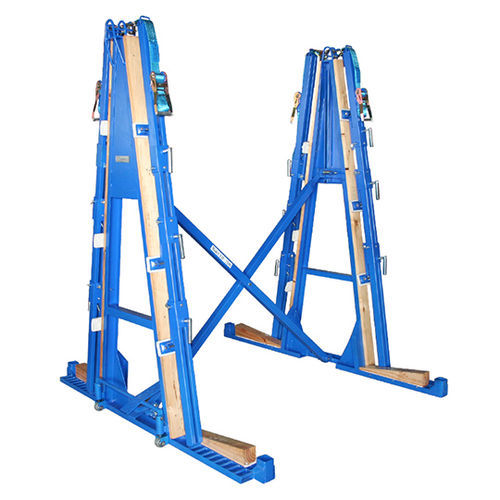

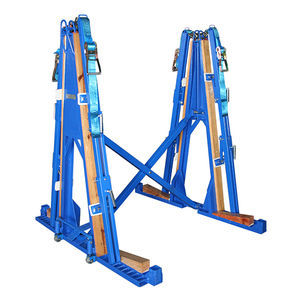

The Aardwolf Folding A-Frame FAF2100 is a transport rack engineered to secure granite and marble slabs during handling and transit. Each side is independently secured by two vertical locking bars inserted into base brackets and tensioned at the top with ratchet locking straps, minimising the risk of material damage. The unloaded frame folds by withdrawing two spring-loaded pins from the cross braces and lowering the three wheels with a cam lever; lowered wheels enable placement on a truck tray or manual movement around a workshop.

Features

• Base bolt holes for optional securing of the frame to a vehicle.
• Rubber pads mounted on adjustable cleats secure slabs and are height-adjustable along the vertical locking bars.
• Large hand-tightened wing nuts lock cleats to the vertical bars.
• Powder-coated finish for corrosion resistance.

Specifications
Metric / Imperial
Width of slab storage base area (each side): 465 mm / 18.3 in
Working load limit per side: 3750 kg / 8267 lb
Total working load limit: 7500 kg / 16534 lb
Net weight: 281 kg / 619 lb
Gross weight: 295 kg / 650 lb
Packaging dimensions: L1920 x W550 x H2330 mm / L75.6 x W21.7 x H91.7 in

Characteristics / technical specifications

• Product code: FAF2100
• Load restraint: integrated vertical locking bars and ratchet locking straps; rubber pads on adjustable cleats; hand-tightened wing nuts
• Fold/transport features: spring-loaded pins on cross braces; three wheels lowered by cam lever for truck-tray positioning or manual movement
• Attachment: bolt holes in frame base for optional vehicle securing
• Finish: powder-coated
• Measurements and capacities as listed above
