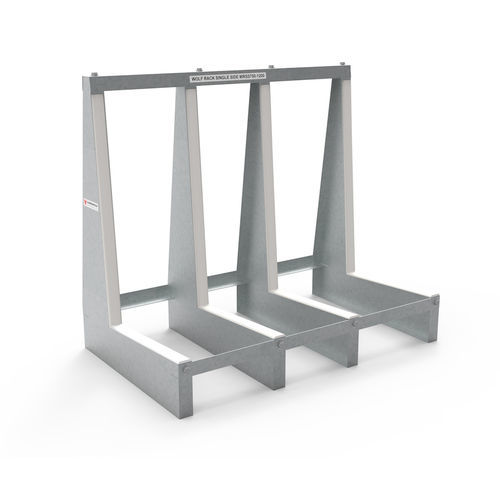

Materials handling transport rack WRSS750-1200

for long, narrow loadswith corner posts

General
The Wolf Rack is an A-frame transport rack manufactured from 2 mm thick sheet metal. Individual A-frames have an open structure; tops contain rivet nuts and are bolted into a U-shaped tie bar with self-aligning bolts. Load bars fit into slots at the base of each A-frame and are fastened with self-aligning bolts into permanently fixed rivet nuts. This creates a rigid connection and allows assembly by one operator with a single tool.

Features

• Modular A-frame construction from 2 mm sheet metal enabling configurable transport racks.
• Rubber-topped bearing surfaces, sloping inward; perpendicular supports cushioned with resilient rubber to protect and retain loads.
• Bearing surfaces positioned low in the A-frame to minimise lift height while allowing forklift fork and pallet jack access.
• Lightweight design that is durable and easy to assemble/disassemble.
• Reduces to a compact empty shipping size by one worker using one tool for efficient return transport.
• Assembled from few parts to shorten assembly and disassembly time.

Options

• Clip-on safety posts to secure large objects (e.g., stone or glass sheets) against the A-frame during transport.

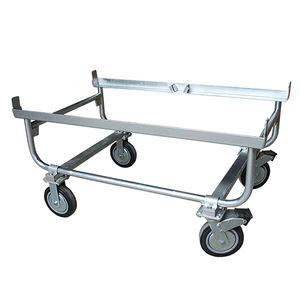

• Quick-fit wheels and handles that use the same bolts and tools as frame assembly for fast conversion to a wheeled unit.
• Available models and related types: WR750-1200, WR1270-1200, WR1270-1600, WR1270-2000; Wolf Rack Pocket models WRP1270-1200, WRP1270-1600, WRP1270-2000; Single Side models WRSS750, WRSS1000, WRSS1270.

Specifications
WRSS750-1200:
Metric | Imperial
Working load limit: 1000 kg | 2204 lb
Width of each side: 510 mm | 20"
Weight: 38 kg | 84 lb
Dimension: - | -

WRSS750-1600:
Metric | Imperial
Working load limit: 1000 kg | 2204 lb
Width of each side: 510 mm | 20"
Weight: 53 kg | 117 lb
Dimension: - | -

WRSS750-2000:
Metric | Imperial
Working load limit: 1200 kg | 2645 lb
Width of each side: 510 mm | 20"
Weight: 63 kg | 139 lb
Dimension: - | -

Patent Pending

Technical specifications

• Structure: A-frame manufactured from 2 mm thick sheet metal.
• Assembly: Rivet nuts and self-aligning bolts; can be assembled with one tool by one operator.
• Bearing surfaces: Rubber-topped and inward sloping; perpendicular supports cushioned with resilient rubber.
• Design: Low bearing height for minimal lift while permitting forklift and pallet jack access.
• Portability: Reducible to compact shipping size; lightweight for manual handling and return shipping.
• Options: Clip-on safety posts; quick-fit wheels and handles.
• Available variants: WR750-1200, WR1270-1200, WR1270-1600, WR1270-2000, WRP1270-1200, WRP1270-1600, WRP1270-2000, WRSS750, WRSS1000, WRSS1270.
• Example spec (WRSS750-1200): Working load limit 1000 kg; side width 510 mm; weight 38 kg.
• Patent status: Patent Pending.
