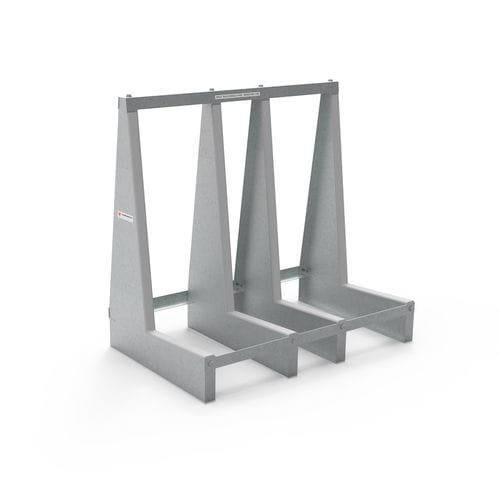

Transport transport rack WRSS1000-1200

steel sheet metalfor stone slabswith corner posts

General
The Wolf Rack Single Side is a transport A-frame rack manufactured from 2 mm sheet metal. The open A-frame modules connect via rivet nuts and self-aligning bolts into a U-shaped tie bar; load bars locate in slots at the base and are secured with self-aligning bolts into rivet nuts fixed to the frame base. This design provides a rigid connection and allows assembly or disassembly with a single tool by one operator.

Features

• Modular A-frame construction from 2 mm sheet metal for scalability and compact nesting.
• Rubber-topped bearing surfaces, inward slope and resilient rubber on perpendicular supports to protect and retain loaded materials.
• Bearing surfaces set low in the A-frame to minimise lift height while allowing forklift and pallet-jack access.
• Lightweight yet strong design; few parts reduce assembly/disassembly time.
• Collapses to a compact empty shipping size manageable by one person with one tool.

Options

• Clip-on safety posts to secure large panels (stone, glass) against the A-frame during transport on concrete floors.
• Quick-fit wheels and handles that use the same bolts and tools as the frame assembly for easy retrofitting.
• Aardwolf offers multiple Wolf Rack types and variants, including WR750-1200, WR1270-1200, WR1270-1600, WR1270-2000, Wolf Rack Pocket models (WRP1270-1200, WRP1270-1600, WRP1270-2000) and Single Side models (WRSS750, WRSS1000, WRSS1270).

Specifications
WRSS1000-1200:
Metric — Imperial
Working load limit: 1000 kg — 2204 lb
Width of each side: 442 mm — 17.4"
Weight: 42 kg — 93 lb
Dimension: - — -

WRSS1000-1600:
Metric — Imperial
Working load limit: 1000 kg — 2204 lb
Width of each side: 442 mm — 17.4"
Weight: 58 kg — 128 lb
Dimension: - — -

WRSS1000-2000:
Metric — Imperial
Working load limit: 1200 kg — 2645 lb
Width of each side: 442 mm — 17.4"
Weight: 70 kg — 154 lb
Dimension: - — -

Patent status
Patent Pending

Technical characteristics

• Model family: Wolf Rack Single Side (WRSS series); example model: WRSS1000-1200.
• Construction: A-frame modules from 2 mm sheet metal.
• Assembly: Rivet nuts and self-aligning bolts; assembly/disassembly with one standard tool.
• Protective surfaces: Rubber-topped bearing faces and resilient rubber on perpendicular supports.
• Low lift height design: bearing surfaces positioned to minimise required lift while allowing fork and pallet-jack access.
• Portability and modularity: collapsible to compact shipping volume; few parts for quick handling.
• Options: clip-on safety posts; quick-fit wheels and handles.
