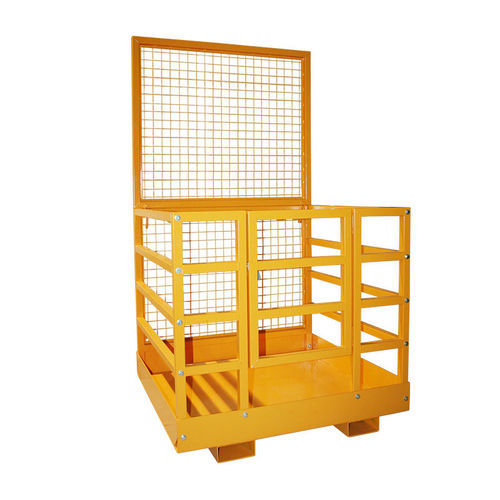

Safety cage ACSC

General
Designed for freight and storage, the easy-to-assemble forklift safety cage is delivered partially pre-assembled. It secures to forklift forks with two safety pins that lock behind the fork heels. The cage enables personnel to perform elevated tasks such as maintenance and stocktaking safely.

Features

• Powder-coat finish in safety yellow
• Non-slip floor material
• Kickboards on all sides
• Door opens inward
• Full-length fork sleeves for secure mounting

Specifications
Metric | Imperial
Working load limit: 250 kg | 551 lb
Net weight: 155 kg | 342 lb
Packaging dimensions: L 1231 x W 1154 x H 225 mm | L 48.5" x W 45.4" x H 8.9"

Safety note
For counterbalance forklifts the forklift's rated capacity must be 1800 kg or five times the total weight of the work cage plus personnel, tools and materials. For reach trucks the requirement is 1000 kg or three times. The forklift operator must remain at the controls while personnel are in the cage.

Technical details / product specifications

• Product code: ACSC
• Working load limit: 250 kg (551 lb)
• Net weight: 155 kg (342 lb)
• Packaging dimensions: 1231 x 1154 x 225 mm (48.5" x 45.4" x 8.9")
• Finish: Powder-coat paint in safety yellow
• Floor: Non-slip material
• Kickboards: On all sides
• Fork sleeves: Full-length
• Door: Inward opening
• Mounting: Secures to forks with two safety pins
