Lifting hook SHA3.15T

swivel360° swivelwith self-locking bolts

Product code
SHA3.15T

Overview

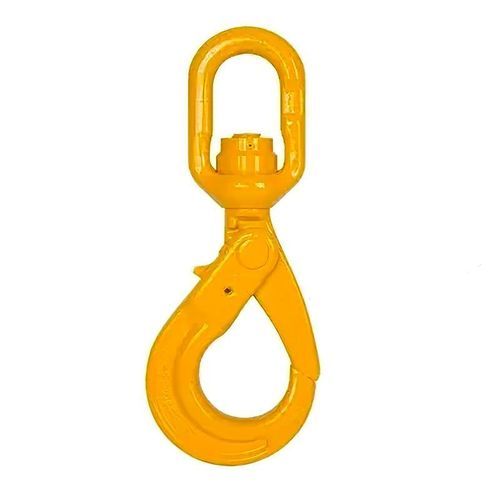

The Swivel Hook Autolock 3.15T is a lifting swivel hook with a built-in bearing that allows 360° rotation under load. It improves alignment with the load line and reduces sling twisting, providing secure attachment for industrial lifting operations.

Key features

• Swivel design: Aligns with the load line for improved handling.
• Self-locking: Automatically locks under load to prevent accidental release when slack occurs.
• 360° swivel: Smooth rotation under full load via sealed bearing.
• Forged alloy steel: Quenched and tempered for strength.
• Standards & testing: 100% Magnaflux crack detection; EN 1677 compliant.
• Proof load: 2.5× WLL; designed with a 4:1 safety factor.
• Powder-coated finish: Corrosion-resistant surface.

Specifications
Metric | Imperial
Working load limit (WLL): 3150 kg | 6944.5 lbs
Thickness: 8 mm | 1/4''
Weight: 2.1 kg | 4.6 lbs

Technical details

• Product code: SHA3.15T
• WLL: 3150 kg (6944.5 lbs)
• Thickness: 8 mm (1/4'')
• Weight: 2.1 kg (4.6 lbs)
• Material: Forged alloy steel, quenched and tempered
• Finish: Powder-coated (corrosion-resistant)
• Testing: 100% Magnaflux crack detection; compliant with EN 1677
• Proof load: 2.5× WLL; 4:1 safety factor
• Operation: 360° swivel under load with built-in bearing; automatic self-locking mechanism
