Steel storage rack ABR02R

General Description

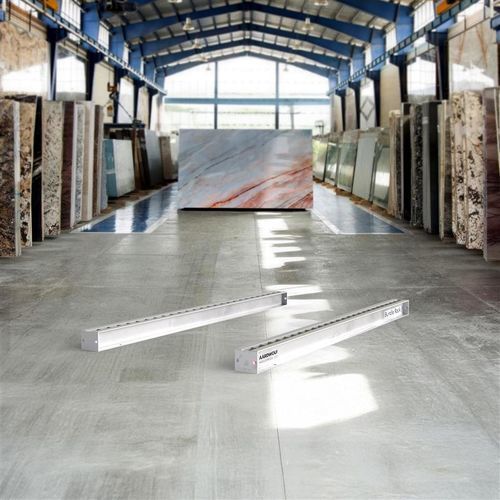

The Aardwolf Bundle Rack – 3M Rubber-Topped is designed for safe, vertical storage of heavy slab bundles. The product is supplied as a pair of 3 m galvanized steel rails with 26 rectangular slots per rail to accept compatible rectangular posts (posts sold separately). Each rail is fitted with a high-grip rubber topping to stabilise materials and protect slab surfaces. Manufactured from high-tensile galvanized steel with a nominal wall thickness of 5 mm, the rails are suitable for industrial slab storage applications where durability and repeatable post positioning are required.

Key Features

• Rubber-topped surface: High-grip rubber battens and rectangular rubber caps reduce slippage and surface damage.
• Heavy-duty galvanized steel: High-tensile construction, yield strength 345 MPa, nominal wall thickness 5 mm.
• Adjustable post positioning: Rectangular holes (26 per rail) allow flexible post layout along the rail.
• Post height compatibility: Works with posts of 1200, 1400 and 1600 mm.
• Optimised for 4° lean storage: Designed for safe, industry-standard slab stacking at 4° lean.
• Supported by Aardwolf Slab Rack Storage Calculator: Use the calculator to determine optimal post layout and spacing with compatible Aardwolf posts.

Slab Rack Storage Calculator
The Aardwolf Slab Rack Storage Calculator is a digital planning tool referenced for this product. It calculates the recommended number, position and height of posts based on slab dimensions and materials. Posts are sold separately; the calculator is optimised for Aardwolf post profiles to ensure accurate results.

Specifications
Galvanized steel rail — Qty: 2 — Metric: 2925 x 164 x 165 mm — Imperial: 115 1/8" x 6 1/2" x 6 1/2"
Rack height — Metric: 165 mm — Imperial: 6 1/2"
Rectangular hole — Qty per rail: 26 — Metric: 101.5 x 52 mm — Imperial: 4" x 2"
Increment — Metric: 111.5 mm — Imperial: 4 3/8"
Rectangular tube post (compatible) — Metric: 100 x 50 mm — Imperial: 4" x 2"
Posts wall thickness — Metric: 5 mm — Imperial: 0.2"
Rectangular rubber cap — Metric: 100 x 50 mm — Imperial: 4" x 2"
Rubber battens per rail — Metric: 50 x 7 mm — Imperial: 2" x 1/4"
Net weight — Metric: 64.2 kg / each rail — Imperial: 141.5 lbs / each rail
Gross weight — Metric: 64.5 kg / each rail — Imperial: 142 lbs / each rail
Packaging dimensions — Metric: L.2925 x W.175 x H.150 mm — Imperial: L.115 1/8" x W.6 7/8" x H.5 7/8"

Note

• Sold as a pair: Each set includes two galvanized steel rails; posts are not included.
• Pricing: Quoted price covers the two rails only; purchase posts separately as required.
• Compatibility warning: The Slab Rack Storage Calculator and recommended layouts are designed for Aardwolf posts; using non‑Aardwolf posts may produce inaccurate results due to profile and steel specification differences.

Characteristics / Technical specifications

• Product type: Pair of galvanized steel rails for vertical slab bundle storage with rubber-topped surface.
• Material: High-tensile galvanized steel (yield strength 345 MPa); nominal wall thickness 5 mm.
• Rail quantity per set: 2.
• Rail dimensions (each): 2925 x 164 x 165 mm.
• Rack height: 165 mm.
• Rectangular hole count: 26 per rail; hole size 101.5 x 52 mm.
• Increment between holes: 111.5 mm.
• Compatible post section: Rectangular tube 100 x 50 mm; recommended wall thickness 5 mm.
• Rubber topping: High-grip rubber battens 50 x 7 mm per rail; rectangular rubber caps 100 x 50 mm.
• Design: Optimised for 4° lean slab stacking.
• Post height compatibility: 1200, 1400, 1600 mm.
• Net weight per rail: 64.2 kg; gross weight per rail: 64.5 kg.
• Packaging dimensions per rail: L.2925 x W.175 x H.150 mm.
