Steel storage rack ABR1400

General
Aardwolf supplies the Bundle Rack Kit (product code ABR1400). The kit includes a pair of galvanized steel rails (3 m each), eight rectangular galvanized steel tube posts, six steel post bases for posts 1200–1400 mm, rectangular rubber caps and timber battens fitted per rail. Rectangular tube posts are manufactured from steel with a minimum yield strength of 345 MPa and 5 mm wall thickness, designed for safe vertical storage of slab bundles at a typical 4° lean.

Features

• Folded steel bases and multiple preformed holes reduce weight and simplify fixing.
• Safe storage capacity per bay at 4° depends on slab thickness and dimensions; use the Aardwolf calculator for precise capacity planning.

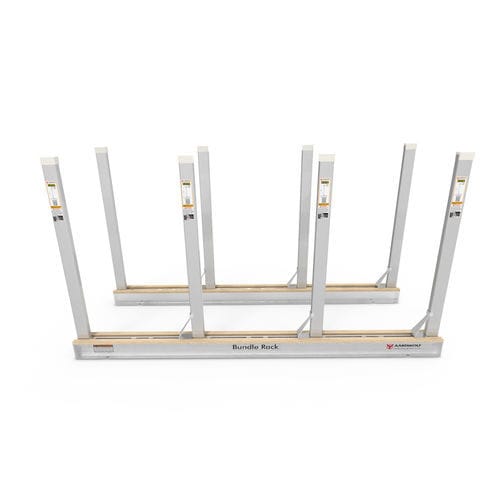

• Rail assembly combines two galvanized rails with eight 100 x 50 x 1400 mm posts and six bases for posts 1200–1400 mm.
• Rectangular rubber caps and timber battens protect slab edges during storage and handling.

Specifications
Qty | Metric | Imperial
Galvanized steel rail | 2 | 3013 x 167 x 140 mm | 118.6" x 6.6" x 5.5"
Rack height | | 160 mm | 6.3"
Rectangular hole | | 101 x 51 mm | 4" x 2"
Increment | | 111 mm | 4.4"
Steel tube post | 8 | 100 x 50 x 1400 mm | 4" x 2" x 55"
Steel post base | 6 | For posts height 1200–1400 mm | 47.2"–55"
Posts wall thickness | | 5 mm | 0.2"
Rectangular rubber cap | 8 | 100 x 50 mm | 4" x 2"
Timber battens per rail | | 50 x 20 mm | 2" x 0.8"

Technical specifications

• Product code: ABR1400
• Included components: pair of galvanized steel rails (3 m each), 8 rectangular galvanized steel tube posts (100 x 50 x 1400 mm), 6 steel post bases (for posts height 1200–1400 mm), 8 rectangular rubber caps (100 x 50 mm), timber battens per rail (50 x 20 mm).
• Material and strength: rectangular tube steel, minimum yield strength 345 MPa; posts wall thickness 5 mm.
• Designed for vertical storage of marble and granite slab bundles with a typical lean of 4°; actual capacity depends on slab dimensions and thickness.

Warning
Do not use the Aardwolf Slab Rack Storage Calculator to calculate capacity for competitor posts; different profiles or lower-yield steels will produce different results.
