Steel storage rack ABR1600

General

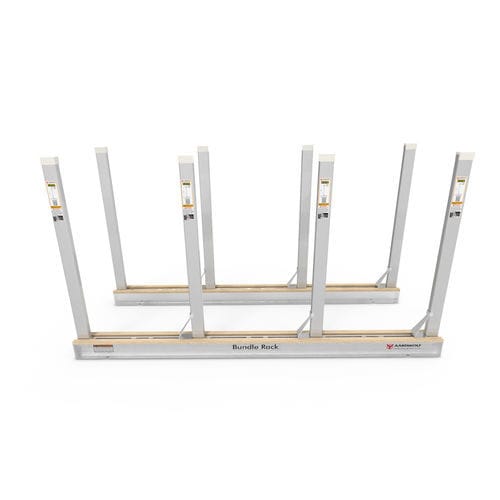

Aardwolf Bundle Rack Kit ABR1600 is a modular storage solution for vertical slab bundles. The kit includes two 3 m galvanized steel rails, eight rectangular galvanized steel tube posts and steel post bases. Posts can be positioned anywhere along the rails. All posts are manufactured from rectangular tube steel with a minimum yield strength of 345 MPa and a 5 mm wall thickness to ensure safe vertical storage of stone slabs.

Features

• Folded-steel bases and seven-hole folded steel rails reduce weight while maintaining strength.
• Safe capacity per bay at a 4° lean depends on slab thickness and dimensions; use the Aardwolf capacity calculator for precise planning.
• Rail and post combination supplied for post heights 1600–1800 mm (standard posts: 1600 mm).
• Includes rectangular rubber caps and timber battens to protect slab faces and ensure secure stacking.
• Designed for efficient pallet-free vertical storage of marble, granite and engineered stone slabs.

Specifications
Galvanized steel rail — Qty: 2 — Metric: 3013 × 167 × 140 mm — Imperial: 118.6" × 6.6" × 5.5"
Rack height — Metric: 160 mm — Imperial: 6.3"
Rectangular hole — Metric: 101 × 51 mm — Imperial: 4" × 2"
Increment — Metric: 111 mm — Imperial: 4.4"
Steel tube post — Qty: 8 — Metric: 100 × 50 × 1600 mm — Imperial: 4" × 2" × 63"
Steel post base — Qty: 6 — For posts height 1600–1800 mm — Imperial: 63"–70.9"
Posts wall thickness — Metric: 5 mm — Imperial: 0.2"
Rectangular rubber cap — Qty: 8 — Metric: 100 × 50 mm — Imperial: 4" × 2"
Timber battens per rail — Metric: 50 × 20 mm — Imperial: 2" × 0.8"

Technical specifications

• Product name: Bundle Rack Kit
• Manufacturer: Aardwolf
• Product code: ABR1600
• Material / yield strength: rectangular tube steel, minimum yield strength 345 MPa
• Post wall thickness (minimum): 5 mm
• Standard post height supplied: 1600 mm (8 posts)
• Post bases supplied: 6 bases for posts 1600–1800 mm
• Rails supplied: 2 galvanized rails ~3 m
• Protection: rectangular rubber caps and timber battens included
