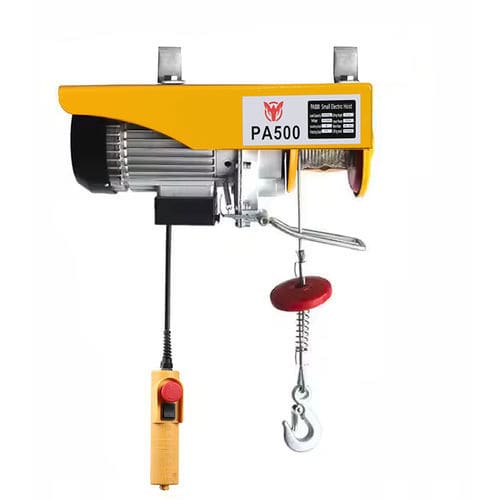

Electric chain hoist PA500

doublecompactmotor-driven

General description
The PA500 electric hoist by Aardwolf is a compact lifting unit designed for workshops, warehouses and light construction use. It operates on a 220 V single-phase supply and provides two lifting configurations: 250 kg with a single hook and 500 kg with a double-hook setup. Standard lifting heights are 12 m (single) and 6 m (double), with corresponding lifting speeds of 10 m/min and 5 m/min.

Key features

• Dual-hook system enabling 250 kg (single) or 500 kg (double) capacity.
• Designed for 220 V, single-phase supply common in industrial and workshop environments.
• Emergency stop switch for immediate shutdown.
• Compact, lightweight design for easy installation and transport.
• Duty cycle S3 – 25%: suitable for intermittent lifting tasks.
• Motor with copper winding for stable electrical performance.

Specifications
PA500 | Metric | Imperial
Load capacity (single/double): 250 / 500 kg | 551 / 1102 lb
Lifting height (single/double): 12 m / 6 m | 39.4 ft / 19.7 ft
Lifting speed (single/double): 10 m/min – 5 m/min | 32.8 ft/min – 16.4 ft/min
Cable diameter: 4.8 mm | 0.19 in
Cable length (single/double): 12 m / 6 m | 39.4 ft / 19.7 ft
Voltage: 220 V — single-phase, 50 Hz
Power: 1000 W
Weight: 16.5 kg | 36.4 lb
Duty cycle: S3 – 25% (max 2.5 min per 10 min cycle)

Technical specifications

• Model: PA500
• Brand: Aardwolf
• Voltage: 220 V — single-phase, 50 Hz
• Power: 1000 W
• Load capacity: 250 kg (single hook) / 500 kg (double hook)
• Lifting height: 12 m (single) / 6 m (double)
• Lifting speed: 10 m/min (single) / 5 m/min (double)
• Cable diameter: 4.8 mm
• Cable length: 12 m (single) / 6 m (double)
• Weight: 16.5 kg
• Duty cycle: S3 – 25% (max 2.5 min per 10 min)
• Emergency stop: Yes
• Motor winding: Copper
