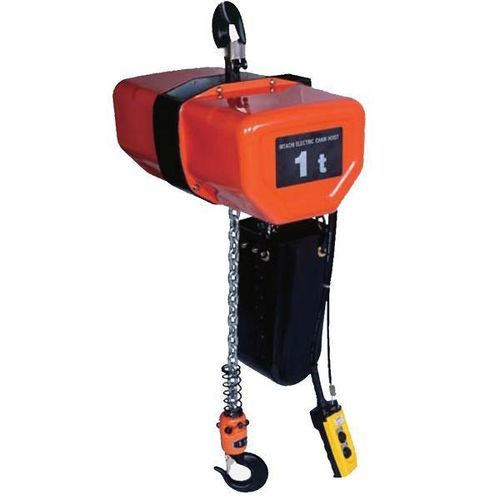

Electric chain hoist HITACHI1SN1ST

trolleymonorail trolleycompact

Overview
The Hitachi 1SN electric chain hoist paired with the 1ST motorized trolley is a 1 000 kg lifting system imported from Japan. Designed for industrial use in factories, warehouses and construction sites, the unit offers precise handling with dual-speed operation, a high-strength load chain and IP54 protection for reliable on-site performance.

Features

• Dual-speed lifting with fast and slow ranges for accurate positioning
• High-strength load chain with rotatable hook and safety latch
• 24V pendant control with emergency stop for operator safety
• Upper and lower limit switches for travel protection
• Reverse phase relay to prevent wiring errors
• Compact, lightweight construction for easy installation and reduced overhead
• Certified CE & UKCA; protection class IP54

Specifications
Model | Metric | Imperial
Load Capacity | 1000 kg | 2204 lbs
Lifting Height (1SN) | 4.5 m | 14.76 ft
Lifting Speed (1SN, dual) | 4.6 / 1.2 m/min | 15.1 / 3.9 ft/min
Hoist Motor Power | 0.8 / 0.2 kW | 1.07 / 0.27 HP
Trolley Speed (1ST) | 10.5 m/min | 34.5 ft/min
Trolley Motor Power | 0.07 kW | 0.09 HP
Load Chain | 7.1 × 20.2 mm | 0.28 in
Pendant Control | U/D/E/W, 24V | U/D/E/W, 24V
Pendant Cable Length | 4.5 m | 14.76 ft
I-Beam Width (1ST) | 75–125 mm | 2.95–4.92 in
Net Weight (1SN) | ~42 kg | ~92.6 lbs
Net Weight (1ST) | ~23 kg | ~50.7 lbs
Power Source | 3 phase, 380V, 50Hz | -
Duty Class | FEM 1Am, 180 starts/h | -
Protection Rating | IP54 | -

Technical specifications

• Brand: Hitachi
• Product code: HITACHI1SN1ST
• Model: 1SN (hoist) configurable with 1ST (trolley)
• Load capacity: 1000 kg
• Lifting height (1SN): 4.5 m
• Lifting speed (dual): 4.6 / 1.2 m/min
• Trolley speed (1ST): 10.5 m/min
• Hoist motor power: 0.8 / 0.2 kW
• Trolley motor power: 0.07 kW
• Load chain size: 7.1 × 20.2 mm
• Pendant control: U/D/E/W, 24V with emergency stop; cable length 4.5 m
• I-beam width compatibility (1ST): 75–125 mm
• Net weight: 1SN ~42 kg; 1ST ~23 kg
• Power: 3 phase, 380V, 50Hz
• Duty class: FEM 1Am, 180 starts/h
• Protection rating: IP54
• Certifications: CE & UKCA
• Origin: imported from Japan
