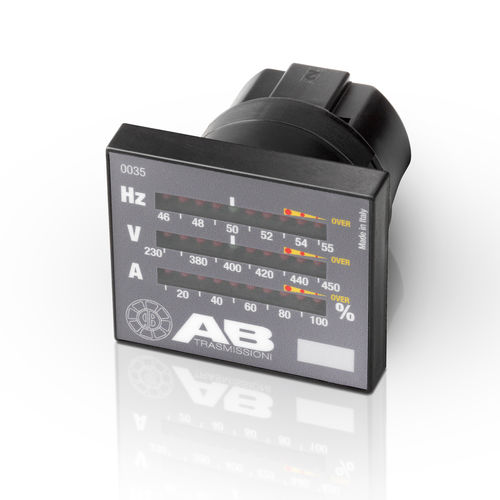

Voltage indicator E56 series

currentfrequencyLED

The indicator is a new measuring instrument designed particularly for the application of generators, electric machines, portable equipment as an alternative to traditional index instruments that can offer numerous technical and economic advantages. A solid state electronics of the highest quality guarantees maximum robustness against vibrations and particularly adverse mechanical and environmental conditions. A microprocessor technology ensures maximum stability and digital precision with an easy and intuitive analog reading. The reading of each measurement takes place on a 10-point highbrightness red LED bar, with voltage and frequency displayed in real value. The central reference point is colored green to further facilitate reading. The current is displayed in% of full scale to provide an immediate nindication of the load conditions. The flashing of the last three LEDs of each bar provides a real measure of the overload conditions while the flashing of the first LED provides a minimum indication. The actual measurement scale is thus extended to 13 points. The possibility of multiple measurements makes this indicator very versatile and adaptable without modifying the electrical panel
