Piston compressor A39B
airelectricmobile

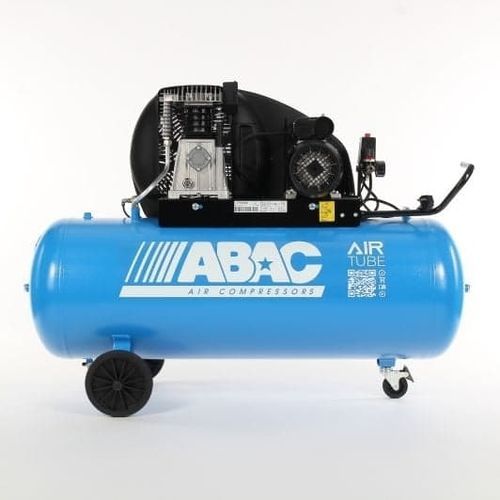

Piston compressor - A39B - ABAC - air / electric / mobile
Piston compressor - A39B - ABAC - air / electric / mobile
Add to favorites
Compare this product

Characteristics

Technology
piston
Type
air
Power source
electric
Portability
mobile
Lubrication
oil-free
Voltage
230 V
Other characteristics
low-noise, tank-mounted
Tank volume

200 l
(52.8 gal)

Pressure

10 bar
(145.04 psi)

Flow

393 l/min
(103.82 us gal/min)

Power

2.2 kW
(2.99 hp)

Length

1,450 mm
(57.09 in)

Width

480 mm
(18.9 in)

Height

1,130 mm
(44.49 in)

Weight

129 kg
(284.4 lb)

Noise level

75 dB, 95 dB

Description

ABAC EXtensive range is the result of meticulous engineering, aimed at delivering a product that doesn’t compromise on performance or value. The EXtensive range from ABAC is designed to meet every requirement, offering versatile solutions that are suitable for all users. The 200mm rear wheels are among the most robust on the market and provide excellent stability. With a power of up to 5.5hp, it can cover a wide range of applications. Design features: - Robust single-side handle - Air reservoir: capacity up to 270 liters - 200mm rear wheels designed for high resistance, plus 2x pivoting front wheels with break Technical features: - Power range: from 2 to 5.5 horsepower - Technology: single and double stage pumps with aftercooler - Power supply: 230/400 V – 1 or 3 Phases – 50/60 Hz - Air delivery: reliable pressure switch with single exit reducer
