Piston compressor A29B
airelectricstationary

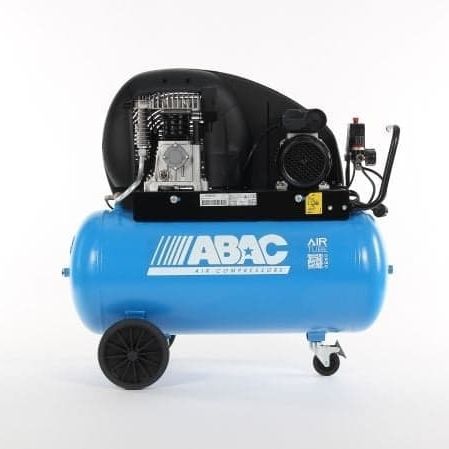

Piston compressor - A29B - ABAC - air / electric / stationary
Piston compressor - A29B - ABAC - air / electric / stationary
Add to favorites
Compare this product

Characteristics

Technology
piston
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-free
Voltage
400 V
Other characteristics
low-noise, tank-mounted
Tank volume

90 l
(23.8 gal)

Pressure

10 bar
(145.04 psi)

Flow

320 l/min
(84.54 us gal/min)

Power

2.2 kW
(2.99 hp)

Length

1,050 mm
(41.34 in)

Width

430 mm
(16.93 in)

Height

900 mm
(35.43 in)

Weight

63 kg
(138.9 lb)

Noise level

75 dB, 95 dB

Description

ABAC EXtensive range is the result of meticulous engineering, aimed at delivering a product that doesn’t compromise on performance or value. The EXtensive range from ABAC is designed to meet every requirement, offering versatile solutions that are suitable for all users. The 200mm rear wheels are among the most robust on the market and provide excellent stability. With a power of up to 5.5hp, it can cover a wide range of applications. Design features: - Robust single-side handle - 200mm rear wheels designed for high resistance, plus 2x pivoting front wheels with break Technical features: - Power range: from 2 to 5.5 horsepower - Technology: single and double stage pumps with aftercooler - Power supply: 230/400 V – 1 or 3 Phases – 50/60 Hz - Air delivery: reliable pressure switch with single exit reducer
