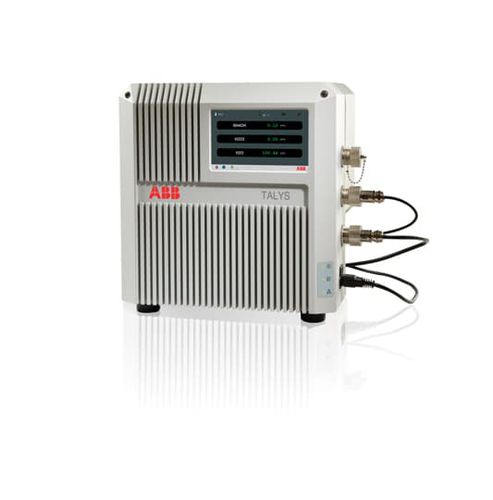

Hydrocarbon analyzer TALYS ASP500 series

monitoringprocessconcentration

TALYS is a fiber optics based industrial FT-NIR analyzer designed for in-line monitoring and control of batch or continuous processes. Its seamless installation enables reactor profiling, real-time determination of process end-point, cycle-time reduction, process characterization and early troubleshooting. Minimal footprint and embedded processor The TALYS design is optimized in order to minimize the complexity and burden traditionally associated with process equipment implementation. This analyzer has minimal footprint and can be shelfmounted or wall-mounted in a safe area without requiring additional enclosure. Real-time process measurements are performed via fiber optics connected to a process sampling interface. TALYS is flexible and supports different types of insertion probes or flow-through cells for real-time measurements in remote locations on various types of processes (fluids or solids). The TALYS ASP500 series feature an embedded processor, therefore no external computer needs to be supplied, approved or regularly upgraded by plant IT services. The instrument is intended to run real-time process applications. In addition, a special “sample grabbing” utility also allows performing offline spectra acquisitions during the calibration model development phase. Data Flexible yet simple to use TALYS ASP500 embedded software executes real-time measurements and reporting operations according to a pre-defined template that incorporates standard inputs and outputs for process control.
