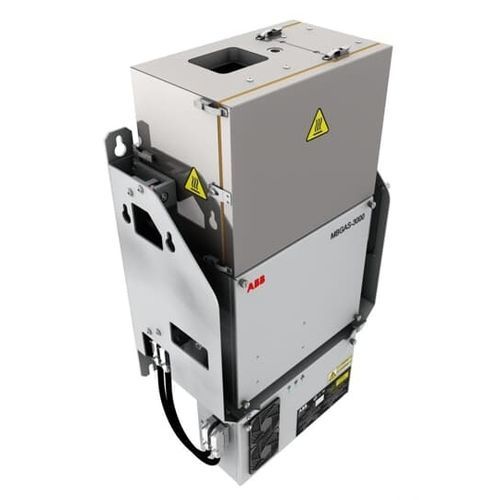

Gas analyzer MBGAS-3000

monitoringprocessmodular

The MBGAS-3000 FT-IR Gas Analyzer is a complete real-time measurement analyzer for multi-gas component analysis designed for combustion processes. This instrument can easily be integrated into a continuous emission monitoring solution. Based on Fourier-transform infrared (FTIR) technology, the MBGAS-3000 Analyzer provides exceptional stability, sensitivity, and photometric accuracy. Based on hot/wet sample extraction. No sample treatment other than dust filtering required. Maintain sample integrity with no need for sample dilution. [NOTE: Can be interfaced with existing dry sample systems High-end analytical performance that complies with emission monitoring regulations. Pre-defined analysis for combustion monitoring processes with focus on waste incineration, process, and power emissions. Minimum commissioning time – design target for single-point calibration per gas range – including water. Flexible, with the multi-range support capabilities. Low maintenance costs thanks to the long-lasting IR source, field serviceable modules, and maintenance-free interferometer. Fast response time due to the long and short path cell low-volume design. Highly reliable analyzer with state-of-the-art embedded software implementation. Simplified integration: Wall or 19” rack mount (rack mount may require adjustment). Modular design for in-field serviceability. Minimal commissioning and maintenance. Robust software design for very high reliability. Pre-defined multi-component analysis for emission monitoring. Designed to meet performance requirements in compliance with standard EN15267-3:2008-3. Unit reports calibrated engineering values with embedded processing.
