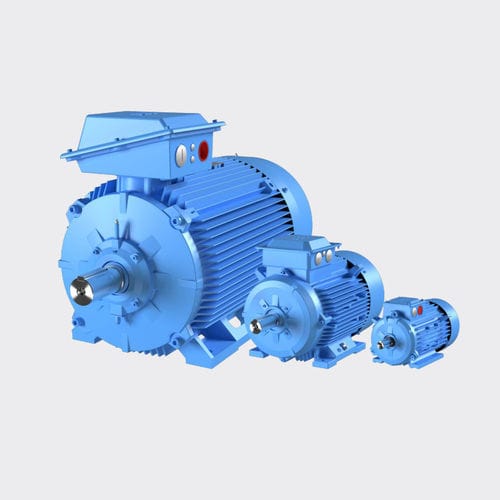

Three-phase motor M2BAX series
induction220 V690 V

three-phase motor
three-phase motor
three-phase motor
three-phase motor
Add to favorites
Compare this product


Characteristics

AC/DC
three-phase
Type
induction
Voltage
220 V, 690 V
Protection class
robust
Configuration
aluminum, cast iron
Efficiency classes
IE2, IE3, IE4
Number of poles
4-pole, 6-pole, 8-pole, 2-pole
Applications
for pumps, industrial
Other characteristics
low-voltage
Power

Min.: 0.18 kW
(0.245 hp)

Max.: 355 kW
(482.666 hp)

Intensity

Min.: 0.6 A

Max.: 623 A

Torque

Min.: 1.26 Nm
(0.9293 ft.lb)

Max.: 2,409 Nm
(1,776.7872 ft.lb)

Rotational speed

1,000 rpm, 1,500 rpm, 3,000 rpm
(6,283.19 rad.min-1, 9,424.78 rad.min-1, 18,849.56 rad.min-1)

Description

Developed from the outset for maximum convenience and easy handling, ABB General performance induction motors can be used in a wide range of industrial applications. These motors are suitable for OEMs to build into pumps and fans, as well as for gearboxes, conveyors, general machinery and other applications. The strong, cast iron motors are a cost-effective choice for pumps, fans, compressors and many other types of machines. •Some standard designs are available from stock, while customer and application specific solutions are manufactured to order and can be tailored to meet specific needs. •With our efficient logistics system we can quickly tailor motors to match your needs. Key features and benefits • General performance motors are available off the shelf for fast delivery. • There’s a wide range of options to choose from and most changes only take one or two days. • Available in efficiency classes IE2 to IE4 • Series 62 or 63 bearings from dependable manufacturers. • Smaller sizes have bearings that are lubricated for life. • A class C3 paint system protects against tough conditions. • Online tools make the motors easy to select and ensure fast access to datasheets and other information.
