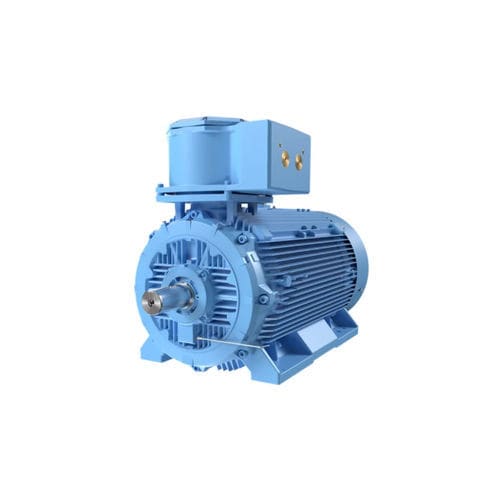

Flameproof motor M3 series
three-phaseasynchronous400V

flameproof motor
flameproof motor
flameproof motor
Add to favorites
Compare this product


Characteristics

AC/DC
three-phase
Type
asynchronous
Voltage
400V
Protection class
IP55, IP65, IP56, IP66, ATEX, flameproof, IECEx
Configuration
small
Number of poles
2-pole, 4-pole, 8-pole, 6-pole
Other characteristics
low-voltage, IE3, IE2
Torque

Min.: 2.4 Nm (1.7701 ft.lb)

Max.: 54.4 Nm (40.1234 ft.lb)

Power

Min.: 0.55 kW (0.748 hp)

Max.: 950 kW (1,291.64 hp)

Rotational speed

Min.: 920 rpm (5,780.53 rad.min-1)

Max.: 2,907 rpm (18,265.22 rad.min-1)

Diameter

Min.: 125 mm (4.92 in)

Max.: 216 mm (8.5 in)

Description

Low voltage flameproof motors ABB offers a full range of IECEx/ATEX certified low voltage flameproof IE2 and IE3 motors, according to IEC 60034-30-1; 2014. Output power: 0.55 to 950 kW Frame size: IEC 80 to 450 Number of poles: 2 to 12 Efficiency class: IE2, IE3 Voltages: All commonly used voltages Frequency: 50/60 Hz Frame material: Cast iron Protection: IP55 (optionally IP56, IP65 and IP66) Protection level: Ex db and Ex db eb, IIB/IIC T4 Gb Certifiates: IECEx/ATEX certified, Equipment protection levels (EPLs), national certificates for example CU-TR (Russia, Belarus, Kazakhstan), CQST (China), Inmetro (Brazil) Features: Certified for variable speed drive Variants for different standards for oil and gas sector Type approval for most marine classification societies Application specific designs available We have redesigned our IE2 and IE3 low voltage flameproof motors in frame sizes 80-132 to meet market needs. These small size motors now hâve improved safety features and provide more options for installation and different applications. Safer design ABB IE2 and IE3 low voltage flameproof motors are designed for safe use in applications with potentially explosive atmospheres. The new motors, in frame sizes 80-132, now have lifting lugs with several mounting positions for safe lifting, handling and installation. Multiple lifting lugs are now standard on ail sizes of ABB IE2 and IE3 low voltage flameproof motor. The new motors replace existing products in frame sizes 80-132. Flexible These small size flameproof motors are designed for flexibility and use in different applications.
