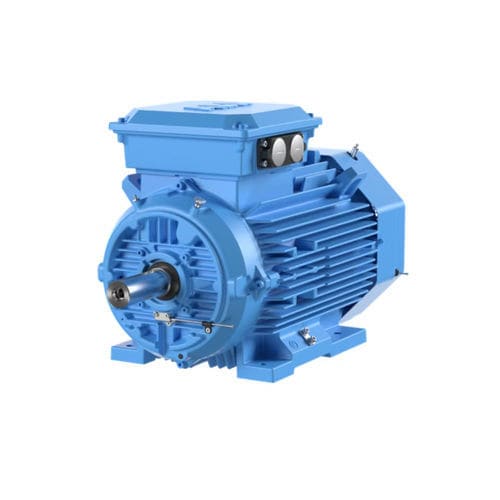

Increased safety motor M3 series
three-phaseasynchronous400 V

increased safety motor
increased safety motor
Add to favorites
Compare this product


Characteristics

AC/DC
three-phase
Type
asynchronous
Voltage
400 V
Protection class
IP55, ATEX, IECEx, increased safety
Configuration
aluminum, cast iron
Efficiency classes
IE2, IE3
Number of poles
4-pole, 6-pole, 8-pole, 10-pole, 12-pole, 2-pole
Applications
for marine applications, for the oil and gas industry
Other characteristics
low-voltage, variable-speed
Power

Min.: 0.12 kW
(0.163 hp)

Max.: 2,000 kW
(2,719.242 hp)

Description

Low voltage increased safety motors Equipment protection level Gc for zone 2 ABB offers full range of ATEX certified low voltage Increased safety Ex ec IE2 and IE3 high efficiency motors. Motors are designed to meet the needs of each customer and each application where protection against the risk of dust or gas explosions is required. Key features • Certified for variable speed drive • Variants for different standards in the oil, gas and chemical sector • Type approval for most marine classification societies • Application specific design available • Cast iron : M3GP - IEC frame sizes 71 to 450 • Aluminum : M3AA - IEC frame sizes 90 to 280 • Output power : 0.12–2000 kW • Voltage/ frequency : 230-690V 50/60Hz • Marking : Ex ec IIC T3 Gc • Efficiency class : IE2, IE3 • Supply : Direct on-line and VSD • Mounting : B3, B5, B14, B34, B35 • Cooling : IC411 as standard • Protection : IP55 or better • Protection type : For zone 2 • Temperature classes T1 - T3 • Gas group IIB or IIC • Certification : IECEx and ATEX certified range, wide range of local certificates available
