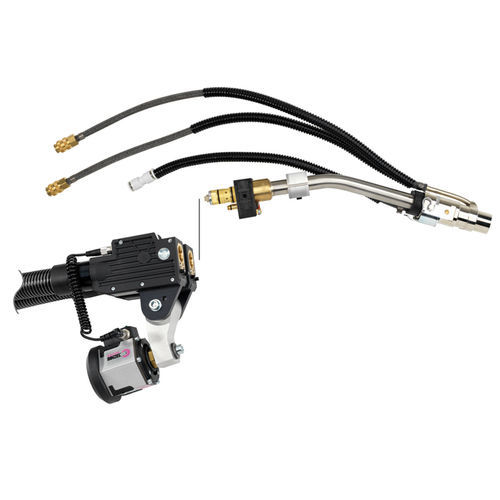

MIG-MAG welding torch WH Tandem W800

water-cooledmanualrobotized

Overview Tandem welding places high demands on the entire welding equipment. The WH W800 is a technically matured, liquid-cooled torch system designed for high-power tandem MIG/MAG applications. Based on the proven WH system and available in several torch geometries, the WH W800 covers a wide range of industrial welding tasks. Three independent cooling circuits ensure stable temperature behaviour under continuous operation.

Advantages

• Simple and fast maintenance
• Compatibility with standard WH cable assemblies
• Quick-action gas nozzle connection; multiple contact tip lengths available
• Optimised for power source technologies from various manufacturers
• Compact design with two separate electrical potentials for tandem operation
• Three independent cooling circuits (gas nozzle and both cable assemblies)

Degree of automation High (suitable for automated welding cells and manual/taken-over neck changes)

Typical areas of application

• Tier 1 / Tier 2 suppliers
• Commercial vehicle manufacture
• Earth-moving and construction equipment
• Rail vehicle production
• Container and tank construction
• Machine and steel construction
• Aerospace industry

Material

• Construction steels (coated / uncoated)
• Chrome-nickel steels
• Duplex steels
• Nickel-base materials
• Mixed compounds and assemblies
• Aluminium alloys
• Magnesium alloys
• Copper alloys
• Special materials

Robot interface

• Conventional robot (cable assembly routed outside): Robot mount CAT3 PRO; Fixed bracket RTM

Technical specifications

• Model: WH W800
• Cooling: liquid-cooled (three independent cooling circuits)
• Rating: 2 × 450 A (CO2); 2 × 400 A (mixed gases M21) according to EN ISO 14175
• Duty cycle: 100%
• Wire Ø (max): 1.6 mm
• Compact design with two separate potentials for high-power tandem welding
• Maintenance: quick; uses standard WH cable assemblies; quick-action connection for gas nozzle
