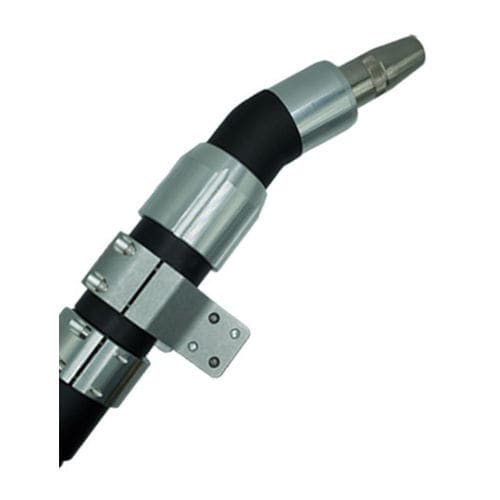

MIG welding torch xFUME® ABIROB® AF500

air-cooledM6M8

Product Overview
The xFUME® ABIROB® AF500 is an air-cooled robotic MIG fume extraction torch engineered for source capture of welding fumes while allowing access to confined weld joints through a slim nozzle profile. It integrates with common cobot platforms and pairs with xFUME® extractors to deliver an efficient, compact extraction solution.

Features and Benefits

• Slim nozzle profile for access to tight welds
• Source-capture using xFUME® extraction technology to reduce ambient fumes
• Preconfigured packages for UR5e, UR10e, UR16e and Fanuc CRX-10 cobots
• Available 180° and 22° swanneck configurations; quick-change swanneck minimizes downtime

Features at a Glance

• Slim profile neck design — maximizes maneuverability and reach in confined welding areas
• xFUME® extraction technology — source-capture design reduces need for large hoods or local enclosures
• EasyTeach or FreeDrive torch mount options — simplifies weld-point programming and integration with cobot systems

Replacement Parts & Selected Ordering Information (excerpt)
Section | Item : Part Number
Front End - Tip Holder for M8 Contact Tip : 142.0158
Front End - Tip Holder for M6 Contact Tip : 142.0159
Front End - Fume Shroud : 983.0018
Front End - Swanneck (180 Degree) : 983.0027
Front End - Swanneck (22 Degree) : 983.0028
Front End - Swanneck (45 Degree) : n/a
Front End - Fume Tube (180 Degree) : 983.0015
Front End - Fume Tube (22 Degree) : 983.0017
Front End - Fume Tube (45 Degree) : n/a

Nozzles and Contact Tips - AF500 :
Conical - Flush 5/8" : 145.0580
Conical - Recess 2mm 5/8" : 145.0581
Conical - Stickout 3mm 5/8" : 145.0582
Conical - Flush 1/2" : 145.0589
Conical - Recess 2mm 1/2" : 145.0590
Conical - Stickout 3mm 1/2" : 145.0591
Bottleform - Flush 9/16" : 145.0586
Bottleform - Recess 2mm 9/16" : 145.0587
Bottleform - Stickout 3mm 9/16" : 145.0588
Bottleform - Flush 5/8" : 145.0583
Bottleform - Recess 2mm 5/8" : 145.0484
Bottleform - Stickout 3mm 5/8" : 145.0585

Liners - AF500 :
Liner Steel .035-.045" 17ft (Steel Wire) : SI4-3545-17PT
Liner Steel .052-.062" 17ft (Steel Wire) : SI4-5262-17PT
Liner Combi .040-.045" 17ft (Aluminum Wire) : 128.9047*
Liner Combi .045-.062" 17ft (Aluminum Wire) : 128.9050*
Liner C-TFE .035-.045 17ft (SST Wire) : 127.9003
Liner C-TFE .052-.062 17ft (SST Wire) : 127.9006

Torch Mounts - AF500 :
Mount Arm Freedrive 22° (TCP=360) : 780.0926
Mount Arm EasyTeach 22° (TCP=360) : 780.0927
Solid Torch Mount : n/a

Product Literature (selected)

• xFUME® ABIROB® AF500 Product Literature (catalog)
• xFUME® ABIROB® AF500 Manual (interactive PDF)
• xFUME® ABIROB® AF500 Ordering Chart
• Torch Mount Assembly Instructions (RTM Flange)

Technical specifications

• Model name: xFUME® ABIROB® AF500
• Type: Air-cooled robotic MIG fume extraction torch
• Fume capture: xFUME® source-capture technology
• Neck / swanneck configurations: 180°, 22° (45° listed; availability not specified)
• Nozzle profile: slim profile nozzle for access to tight spaces
• Robot / cobot compatibility: packages available for UR5e, UR10e, UR16e, Fanuc CRX-10
• Torch mount options: EasyTeach or FreeDrive (mount arm part numbers: 780.0926, 780.0927)
• Front-end components: tip holders (M8 / M6), fume shroud, fume tubes (part numbers listed above)
• Nozzle/contact tip types & sizes: conical and bottleform options in 1/2", 9/16", 5/8" with various stickout/recess options (part numbers listed above)
• Liner options & lengths: steel, combi, C-TFE liners (17 ft lengths; part numbers listed above)
• Cooling: air-cooled
• Quick-change swanneck: reduces downtime and maintenance
