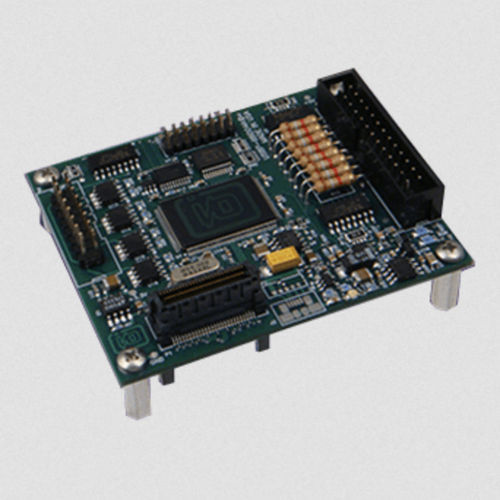

Analog data acquisition card USBP-II8IDO4A
digitalmulti-function16-bit

analog data acquisition card
analog data acquisition card
Add to favorites
Compare this product


Characteristics

Input/output signal
analog, digital
Other characteristics
16-bit, multi-function

Description

-High-speed USB 2.0 device, USB 3.0 and 1.1 compatible -8 individually optically isolated digital inputs -Polarity insensitive AC/DC inputs accept up to 31VDC or AC RMS -Jumper selectable filtering per input channel for AC or voltage transients -Four optically isolated fully protected solid state high-side FET outputs -Outputs capable of switching from 5-34 VDC at up to 3A each -Two general purpose 16-bit A/D inputs -Custom high-speed function driver -Alternate embedded USB connector -All required power drawn from USB port, no external power adapter required -Pico-I/O™ module size (60mm x 72mm) & mounting capability -Designed, made, supported, and manufactured in the USA FACTORY OPTIONS -4-20mA range for analog inputs -Extended temperature (-40°C to +85°C) operation Small USB OEM Board Provides 8 Isolated Digital Inputs, 4 Solid State Relay Outputs, and two 16-Bit Analog Inputs The USBP-II8IDO4A is an ideal OEM USB solution for adding embedded reliable and robust multi-function I/O capabilities to any USB system. Featuring 4 solid state FET outputs, 8 optically isolated digital inputs and 2 high-resolution analog inputs, the unit is the smallest of its kind for multi-function control and monitoring using USB. The digital inputs accept AC or DC signals as high as 32 volts and are interfaced via a 26-pin IDC type vertical header. The pinout allows a simple accessory cable to interface to one of the many available external screw terminal boards. The FET outputs can switch customer supplied voltages from 5 to 34V at UP TO 3A! The outputs are de-energized at power-up to prevent an unintended control output signal.
