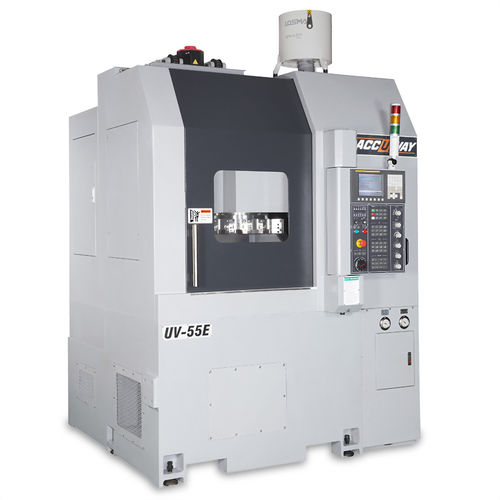

CNC turning center UV-55Evertical2-axisA2-8
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Spindle mount
- A2-8
- Diameter
750 mm
(29.53 in)- Maximum cutting diameter
550 mm
(22 in)- Maximum cutting length
550 mm
(22 in)- Rapids on X
20,000 mm/min
(13 in/s)- Rapids on Z
7,000 mm/min
(5 in/s)- Overall lenght
2 m
(6'06" )- Overall width
3 m
(9'10" )- Overall height
3 m
(9'10" )- Weight
5,300 kg
(11,684 lb)
Description
Guide way type - Linear
Chuck diameter - inch - 12(15)
Spindle drive system - Belt
