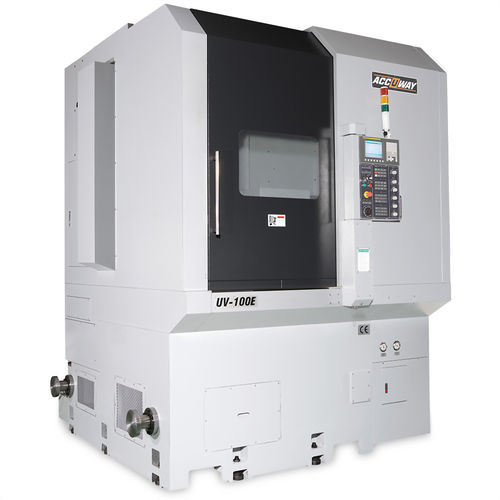

CNC turning center UV-100E
2-axis12 toolswith turret

CNC turning center
CNC turning center
CNC turning center
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
2-axis
Number of tool stations
12 tools
Other characteristics
with turret
Diameter

1,100 mm
(43.31 in)

Spindle speed

1,200 rpm
(7,539.822 rad.min-1)

Maximum cutting diameter

1,000 mm
(39 in)

Maximum cutting length

700 mm
(28 in)

Axe X

550 mm
(22 in)

Axe Z

800 mm
(31 in)

Rapids on X

15,000 mm/min
(10 in/s)

Rapids on Z

7,000 mm/min
(5 in/s)

Nominal power

30 kW, 37 kW, 45.5 kW, 55 kW
(40.8 hp, 50.3 hp, 61.9 hp, 74.8 hp)

Overall lenght

3,100 mm
(122 in)

Overall width

3,700 mm
(146 in)

Overall height

4,200 mm
(165 in)

Weight

16,000 kg
(35,274 lb)

Description

Guide way type - Box way Spindle nose taper - ASA - A2-15 Chuck diameter - inch - 24(32/40)
