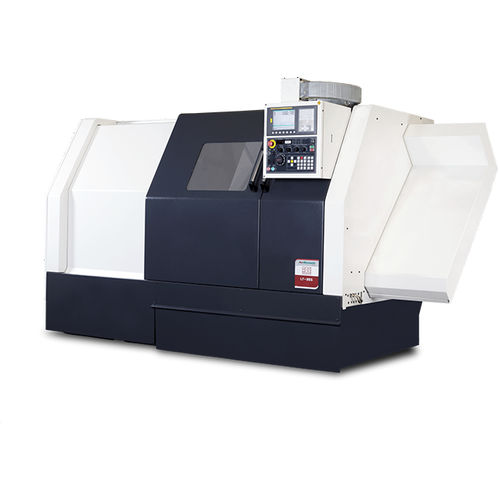

CNC lathe LT-25 series

horizontal2-axisheavy-duty

LT-25/30/40 slant bed turning centers are known for their rigidity which is essential for heavy duty cutting of large work pieces. They meet a variety of production requirements like Fly wheels, Hubs, Alloy wheels, Brake drums, Axle shafts etc., A range of center distances as well as different spindle bore sizes are available. These machines provide wide machining areas with minimum tool interference. Salient Features •Cartridge spindle •Powerful AC spindle motor •Rigid structure •Hardened & ground box ways on both axes •Programable quill •Programable tailstock is a standard feature •12 staion tool turret •A2-8 spindle All spindles are assembled and tested in a controlled clean room environment. After assembly Spindle assemblies are subject to stringent testing on a electronically controlled automatic testing rigs. Temperature of the spindle is monitored and recorded automatically with a pre-set running rhythm. Any abnormalities recorded are eliminated without any slippages. This rhythmic evaluation ensures thermal stabilization of the entire assembly with the bearings. This guarantees performance and optional bearing longevity. Ball Bar Testing Used to check circular interpolation accuracy of CNC machine. Geometrical errors, Servo related errors, cyclic errors are diagnosed instantaneously. The bed is fine grain Grade 25 cast iron casting with box type construction. It is heavily ribbed to provide rigidity and is thermally seasoned. The bed is designed for easy chip flow and removal. The chip pan is independently located under the cutting area.
