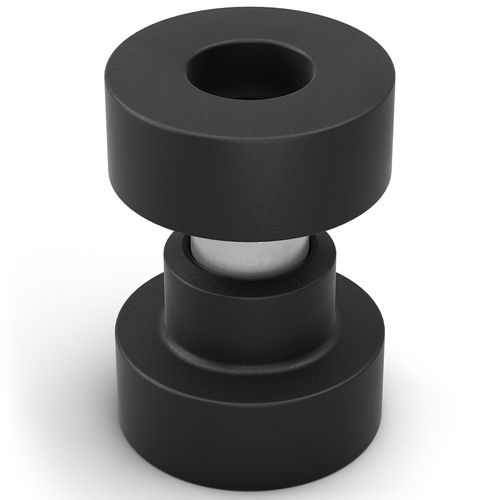

Cylindrical anti-vibration mount UMO-6002

metalrubbermachine

Elastically mounted under dynamic loads Universal Connection Isolators Natural frequency 10.2 Hz to 24.4 Hz Stable connection and efficient decoupling: ACE offers two-piece isolators in the Universal Mounts product family, to connect machines or plants with adjacent components such as cabins or housings. The breakaway-resistant machine elements cover a load range of up to 2,065 kg for each mounting element and can be used with the standard type in temperature ranges from -30 °C to +80 °C. They are easy to install as stable elastic mounts for applications with high dynamic loads, effective in all spatial directions, and compensate high dynamic loads reliably, due to their stability and cushioning qualities. They consist of elastic mounting elements and are primarily used in mobile applications for isolating multi-directional vibrations, impacts or structure-borne noise in vehicle cabins, motors or transmissions. Natural frequency 10.2 Hz to 24.4 Hz Operating temperature range -30 °C to +80 °C Environment Resistant against UV radiation Material Outer body: zinc plated steel; Isolation medium: Neoprene (chloroprene rubber)
