Elastomeric anti-vibration pad SL-100-12

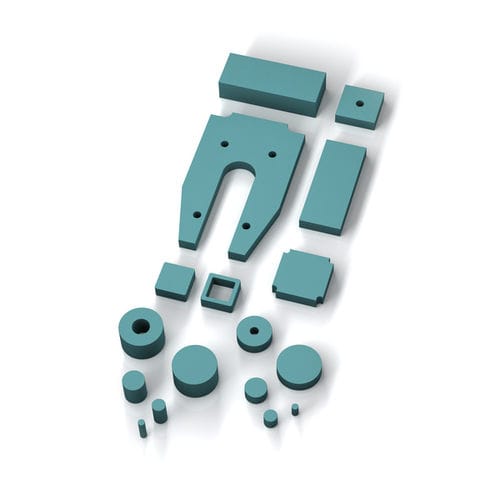

Damping Pads SL-100-12 Energy absorption in pad format Confectioning and Combinable Energy capacity 15.0 Nm/Cycle to 60.0 Nm/Cycle Stroke 6.5 mm Tailor made damping material in pad format: SLAB damping pads are made of a viscoelastic PUR-material. They absorb impact loads extremely effectively and are also suitable for insulating or damping vibration. The pads of the product family SL-030 to SL-300 are quickly adapted to the relevant type of application. This is in part achieved through the configuration of the calculating tool or directly by the ACE specialist engineers. Furthermore, this is possible because the standard material can be cut exactly and quickly to any customer requirement with our new cutting system. It is also possible to obtain a sample to find an optimum solution. The SLAB damping pads are proven impact or collision protection. They are used on luggage and transport belts, conveyor systems, pneumatic, electromechanical and hydraulic drives as well as on linear carriages. Energy capacity 15.0 Nm/Cycle to 60.0 Nm/Cycle Stroke 6.5 mm Standard density ca. 340 kg/m3 Standard colour green Dimensions Widths: up to 1.500 mm Lengths: up to 5.000 mm Thickness: 12.5 mm Environment Resistant against ozone and UV radiation. Chemical resistancy on request. Operating temperature range -5 °C to +50 °C Material Profile body: mixed cellular PUR-Elastomer (polyurethane) Damping Pads - SLAB 030 to SLAB 300 Load protection for transport units in tyre testing systems
