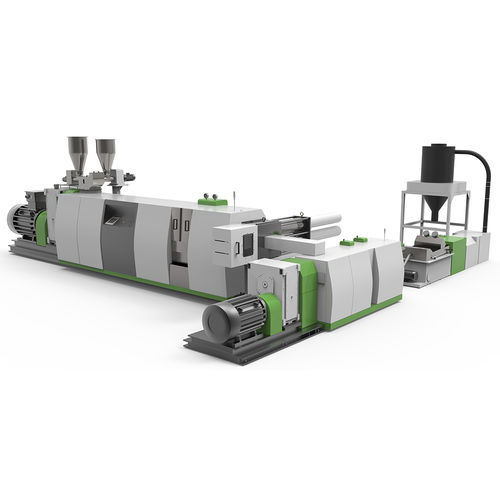

Water ring pelletizing system ADS

for plastic wastefor plasticsfor laboratories

ADS Double Stage Cutter Compactor Plastic Recycling Pelletizing Extruder Line Machine The ADS series single screw extrusion and pelletizing system is a specialized and reliable system, suitable to the recycling and re-pelletizing job of rigid plastic scrap. It combines function of plasticization and pelletizing to one step and is ideal for crushed regrinds or flakes of PE/PP/ABS/PS/HIPS/PC etc. Final productions produced by ADS single screw extrusion line are in the form of pellets/ granules, can directly put into the production line for film blowing, pipe extrusion cand plastics injection,etc. SPECIFICATIONS Target Recycled Material:HDPE，LDPE，PP，BOPP，CPP，OPP，PA，PC，PS，PU，ABS Final Product Shape: Particles Final Product Shape:Particles System composition:Screw Loader, Single Screw Extruder, Filtration first, Vacuum Degassing, Pelletizer, Water Cooling Device, Dehydration Section,Conveyor Fan, Product Silo. Output Range:320kg/h-2100kg/h Feeding Device:Belt Conveyor (Standard), Roll Hualing off device (Optional) Diameter of screw:100mm-180mm Material of screw:Bimetal L/D of screw:50/ 1 Heater of barrel:Ceramic heater or Far-infrared heater Cooling of Barrel:Air cooling of fans through blowers Vacuum deashing exhaust:Two Double-zone vacuum degassing system (Standard) Pelletizing type:Water-ring pelletizing/ water-strands pelletizing/ Under-water pelletizing Voltage Standard:According to the Voltage of the Customer's Location Optioanl device:Metal detector, Roll hualing off device, Masterbatch and additives feeder Warranty:13 months from the date of bill of lading Technical services:project design, factory construction, installation and recommendations, commissioning
