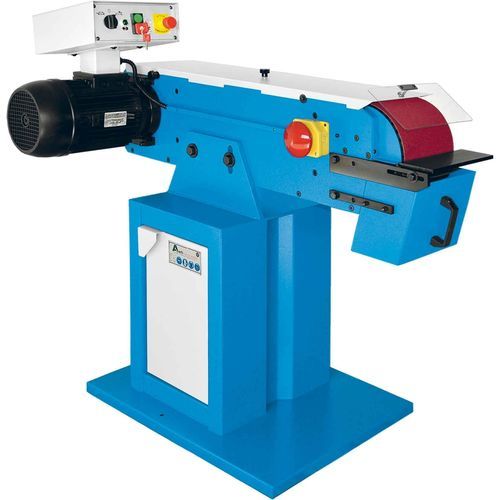

Surface grinding machine ART.90

toolworkpieceautomatic

Power supply 400 | 50 | 3 Volt|Hz|Phase Acoustic emission 75 dB Overall dimension (Width x Depth x Height) 1420 x 700 x H. 1150 mm Weight standard machine 220 kg Belt grinder unit - wheel processing Abrasive belt dimension (wide x length) 200 x 2500 mm Peripheral speed 36 - 18 m/sec Dimension of working plane (behind abrasive belt) 230 x 720 mm Driving wheel dimension ø 250 mm Orientable belt grinding arm - 30 ÷ + 30 ° Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Base Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside. Electrical panel Low voltage electric controls with padlock device integrated in the main electric switch. Electronic brake card Emergency stop with electronic motor braking with safety anti-reset function. Motor Motor 2 speeds Belt grinder head The belt grinder head is adjustable from -30 ° to + 30 ° and intermediate positions. Support plane Orientable support surface for working in support near the front contact wheel. Front contact wheel Front contact wheel rubberized grooved and balanced Rubberized drive wheel Rubberized and balanced drive wheel for better drag of the abrasive belt. Work surface Behind the abrasive tape has a durable floor in abutment replaceable steel over time.
