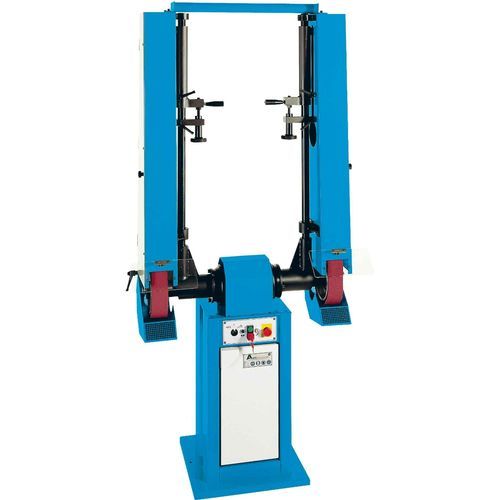

Workpiece grinding machine ART.57
automatic

workpiece grinding machine
workpiece grinding machine
Add to favorites
Compare this product


Characteristics

Applications
workpiece
Control type
automatic
Spindle speed

1,400 rpm, 2,800 rpm
(8,796 rad.min-1, 17,593 rad.min-1)

Power

3.3 kW, 4.4 kW
(4.49 hp, 5.98 hp)

Description

Power supply 400 | 50 | 3 Volt|Hz|Phase Acoustic emission 75 dB Overall dimension (Width x Depth x Height) 1100 x 600 x H. 2200 mm Weight standard machine 260 kg Belt grinder unit - wheel processing Abrasive belt dimension (wide x length) 50 x 2500 ÷ 3000 mm Peripheral speed 36 - 18 m/sec Dimensions of grooved rubberized driving wheel (wide x diameter) 50 x ø 250 mm Orientable belt grinding arm 0 ÷ 90 ° Operators 1 No. Stations 2 No. Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Base Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside. Electrical panel Low voltage electric controls with padlock device integrated in the main electric switch. Electronic brake card Emergency stop with electronic motor braking with safety anti-reset function. Motor Motor 2 speeds Orientable telescopic arm sander Orientable telescopic arm sander adjustable from 0 ° to 90 ° and intermediate positions. Telescopic arm Arm telescopic machine that allows to mount tapes from development 2500 mm up to 3000 mm. Rubberized grooved wheel Rubberized grooved wheel d.250x50 mounts on machine Widths abrasive belts Three possible web widths by replacing the rubber wheel: 50mm - 75mm - 100mm. Abrasive belt Abrasive belt mounted on the machine ready for use.

Other ACETI MACCHINE products

Swing belt grinding machines for rubber wheel processing
