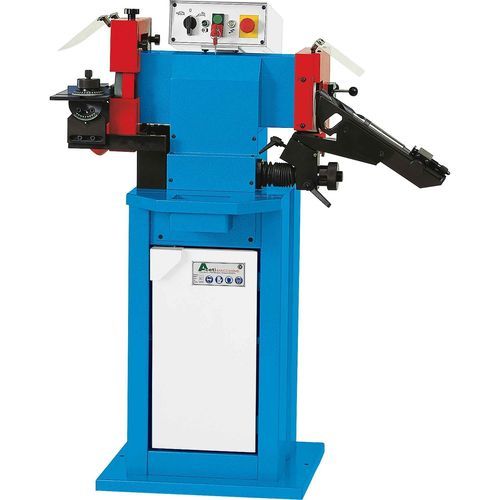

Sharpening machine ART.112

Power supply 400 | 50 | 3 Volt|Hz|Phase Acoustic emission 70 dB Overall dimension (Width x Depth x Height) 1050 x 650 x H. 1300 mm Weight standard machine 115 kg Tools sharpener Cup grinding wheel dimension 200 mm Sharpening angle - 90 ÷ + 90 ° Support table dimension 390 x 150 mm Support table revolution - 45 ÷ + 45 ° Peripheral speed 30 - 15 m/sec Drill sharpener arm "A" Drill diameter 5 ÷ 35 mm Sharpening angle 118 ° Cup grinding wheel dimension ø 200 x 40 x ø 20 mm Peripheral speed 30 - 15 m/sec Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Base Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside. Electrical panel Low voltage electric controls with padlock device integrated in the main electric switch. Electronic brake card Emergency stop with electronic motor braking with safety anti-reset function. Motor Motor 2 speeds Trailing arm Trailing arm for sharpening twist drills with diameters between Ø5 to Ø35mm.Trailing arm adjustable in axial position, to maintain the minimum distance with the cup grinding wheel.Trailing arm adjustable along the side of the grinding wheel, in order to exploit the whole cutting surface. Sled for adjustment Arm with sled for adjustment of the length of the tip.
