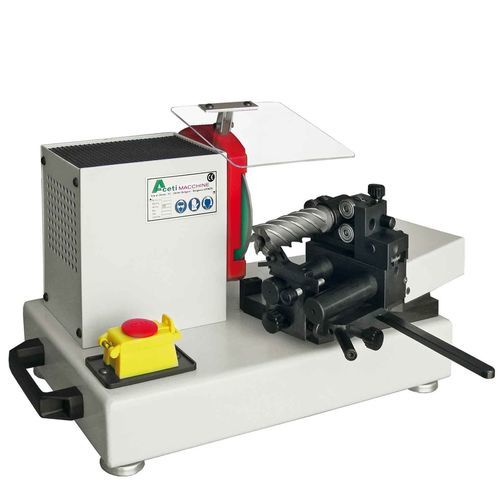

Automatic sharpening machine ART.119

Power supply 230 | 50 | 1 Volt|Hz|Phase Acoustic emission 72 dB Overall dimension (Width x Depth x Height) 530 x 370 x H. 300 mm Weight standard machine 30 kg End mill sharpener End mill diameter 6 ÷ 32 mm Sharpening angle +5 ÷ -5 ° Peripheral speed 22 m/sec Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Technical general information - Side cutter sharpening device. - Cutter head sharpening device. - Bushes for sharpening cutters with tapered shank (morse cones). - Variable rake angle from 6 ° to 28 °. - Variable sharpening angle ± 5 °. - Diamond wheel mounted on the machine ready for use.
