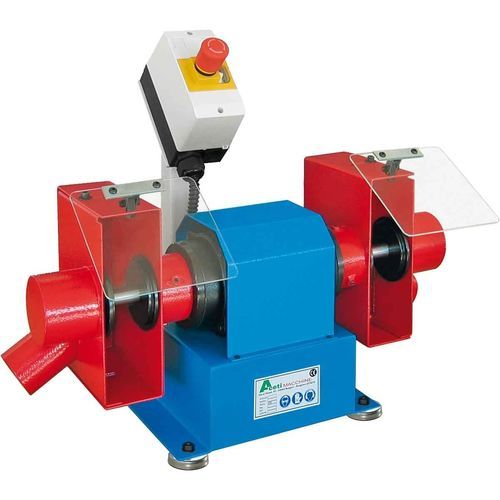

Metal polishing machine ART.132

finishinggrindingbuffing

Power supply 400 | 50 | 3 Volt|Hz|Phase Motor power 1,1 ( 1,5 ) kW ( hp ) Motor speed 2800 rpm Acoustic emission 69 dB Overall dimension (Width x Depth x Height) 590 x 350 x H. 300 mm Weight standard machine 28 kg Polisher - Buffer unit Brush maximum external size ø 200 mm Motor shaft diameter ø 20 mm Brush maximum wide size 40 mm Peripheral speed of brush 30 m/sec Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Base Stable bench structure with anti-vibration rubbers at the base. Electrical panel Electric controls with emergency stop and anti-reset function for accidental starting and electronic overload protection. Polishing cover Carter adjustable for a comfortable and precise positioning of the operator and with predisposition connection system. Locking accessories Locking and reducing steel flange for brush, flap wheel with spacers and clamping nuts. Anti-spark repair Transparent protection arrester with friction joint.
