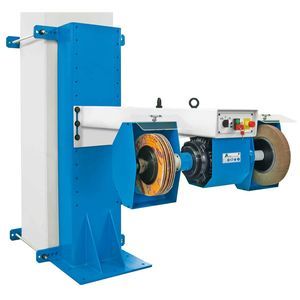

Metal polishing machine ART.140

finishingautomaticbelt

Power supply 400 | 50 | 3 Volt|Hz|Phase Motor power 7,5 kW ( hp ) Motor speed 30 ÷ 1500 rpm Acoustic emission 75 dB Overall dimension (Width x Depth x Height) 1560 x 1460 x H. 1600 mm Weight standard machine 1150 kg Polisher - Buffer unit Brush maximum external size ø 960 mm Motor shaft diameter ø 45 mm Brush maximum wide size 100 mm Peripheral speed variable m/sec Stations 2 No. Operators 2 No. Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Technical general information - Independent electric motors and controls. - Brush spacers, centering flanges and tightening nuts. - Inverter for the electronic regulation of the motor revolutions from 30 ÷ 1.500 revolutions. - Display for reading the engine revolutions. - Brush ignition and acceleration controlled with "soft start" adjustment. - Adjustable cleaner casing according to the brush diameter. - Carter cleaner with predisposition for connection of suction system Ø120 mm.
