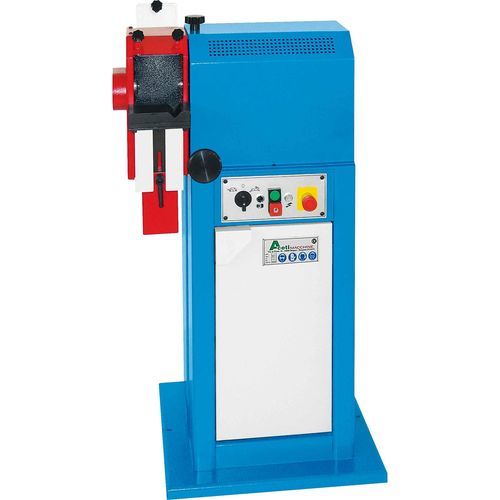

Tube deburring machine ART.92

deburringbrushfor sheet metal

Power supply 400 | 50 | 3 Volt|Hz|Phase Motor power 4,4 - 3,3 ( 6,0 - 4,5 ) kW ( hp ) Motor speed 2800 - 1400 rpm Acoustic emission 70 dB Overall dimension (Width x Depth x Height) 670 x 540 x H. 1150 mm Weight standard machine 155 kg Deburring unit Arm "A" Workpiece diameter allowed ø 10 ÷ ø 60 mm Workpiece thickness allowed max. 60 mm Workpiece width allowed max. 60 mm Brush maximum external size ø 250 mm Motor shaft diameter ø 35 mm Brush maximum wide size 60 mm Peripheral speed of brush 36 - 18 m/sec Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Technical general information - Workpiece support surface with “V” seat for round tubes axially adjustable for the complete use of the brush. - Worktop supports pieces and adjustable casing according to the diameter of the brush. - Top supports pieces with adjustable height. - Deburring brush for iron 60mm wide mounted on the machine ready to use. - Brush spacers, centering flanges and tightening nuts. - Transparent spark arrestor protection. - Carter cleaner with predisposition for connection of suction system Ø80mm. Optional Equipments cod. IA-1: DUST EXTRACTOR - ONE CONNECTION DUST EXTRACTOR kit with one suction mouth: complete of dust filter bag in flexible aluminum pipe and hose clamps.
