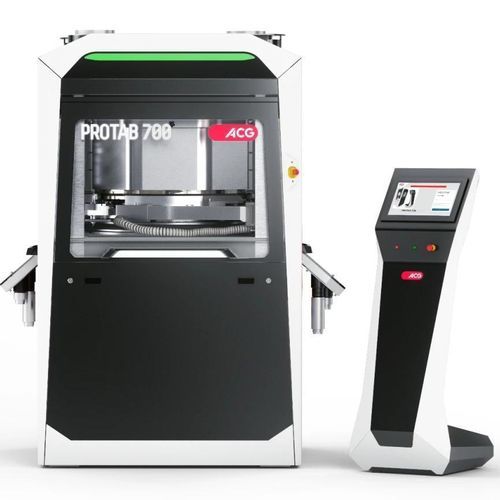

Rotary tablet press PROTAB™ 700

double-layersingle layerautomatic

About the PROTAB™ 700
The PROTAB™ 700 is a double-rotary tablet press designed for high-throughput production of monolayer and bilayer tablets. Developed with input from process specialists, it supports large-scale campaign batches and offers modular options for format and process flexibility.

Applications

• Monolayer tablets
• Bilayer tablets

Features & Benefits

• Retrofittable bilayer kit — enables bilayer tablet production
• InstAmend technology — detects and corrects faulty punches immediately, reducing process interruptions
• Interchangeable turret design — allows compression of various tablet sizes at different speeds
• Servo-based automatic weight control — maintains consistent tablet weight
• Sophisticated feeder design (approx. 100 g feeder leftover) — increases yield and reduces formulation loss
• Toolless assembly design — faster batch-to-batch changeover (typical changeover time ~60 minutes)
• Individual layer sampling and rejection of defective bilayer tablets — simplifies sampling without compromising quality

Technical specifications

• Punch type: D, B, BB, BBS
• Punch stations (by punch type): D = 51; B = 63; BB = 79; BBS = 85
• Maximum monolayer output (tablets/hr): D = 489,600; B = 604,000; BB = 758,000; BBS = 816,000
• Maximum bilayer output (tablets/hr): D = 153,000; B = 189,000; BB = 237,000; BBS = 255,000
• Maximum tablet diameter: D = 25 mm; B = 16 mm; BB = 13 mm; BBS = 11 mm
• Designed for large-scale campaign batches with monolayer and bilayer capabilities
• Manufacturer: ACG
