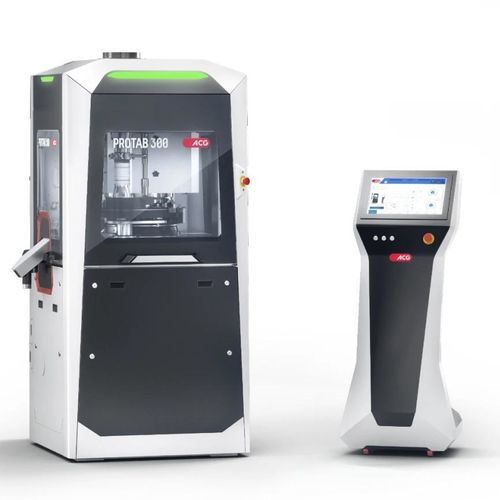

Rotary tablet press PROTAB™ 300

single layerautomatic

About the PROTAB™ 300
PROTAB™ 300 is a single rotary tablet press designed for R&D and small- to medium-batch production, enabling straightforward scalability from laboratory trials to pilot runs. Designed for operator efficiency, it delivers controlled automatic tablet compression with an upgraded user interface and interactive dashboard to support higher throughput and improved production uptime.

Applications

• Compression of pharmaceutical and nutraceutical granules and MUPS into monolayer tablets

Features & Benefits

• R&D turret with combinations for testing different formulations and tooling — easily scalable from R&D batches to pilot production on the same machine
• Optional kits for multiple-unit particulate systems (MUPS) and challenging formulations (abrasive, corrosive or poor-flow powders) — reduces segregation and crushing of pellets/powders to improve tablet uniformity and dissolution profiles
• Interchangeable turrets — flexibility to compress various tablet sizes at different speeds
• Lightweight, toolless assemblies — mechanical changeover in under 30 minutes for faster production changeovers
• InstAmend technology for faulty punch detection and rectification — minimizes process interruptions and downtime
• Precise single-tablet sorting, sampling and rejection at rated RPMs — ensures repeatable control of weight, height and thickness
• Sophisticated feeder design — residual powder <50 g reduces loss of valuable formulation

Characteristics / Technical specifications

• Punch type: D, B, BB, BBS
• Punch stations: D = 21; B = 27; BB = 34; BBS = 36
• Output (max, indicative): D = 126,000 tablets/h; B = 162,000 tablets/h; BB = 204,000 tablets/h; BBS = 216,000 tablets/h
• Maximum tablet diameter: D = 25 mm; B = 16 mm (L = 19 mm); BB = 13 mm (L = 14 mm); BBS = 11 mm
