Sight glass for industrial applications MAXOS®

for vesselsmonitoringfor chemicals

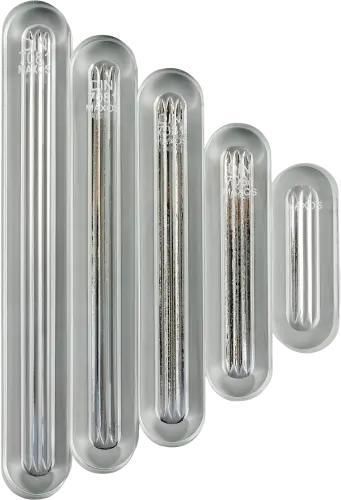

Thermally pre-stressed borosilicate sight glass designed according to DIN 7081 for visual inspection of processes in containers. Available as reflective and transparent MAXOS® safety sight glasses offering high chemical resistance, purity and exceptional thermal cycling performance due to thermal pre-stressing.

Options

• FEP coating (only for transparent rods)
• Halar® coating (only for transparent rods)
• Stepped shapes
• Rods with contour cuts
• Rods with bevels, grooves and channels
• Special dimensions up to 55 mm thick

Dimensions — Transparent glass (DIN 7081) — 30 mm width

• 115 mm × 30 mm, thickness 17 mm — MAXOS® Product code 2071768 — ACI Article number 12-7081-115-30-17-00
• 140 mm × 30 mm, thickness 17 mm — Product code 2071769 — ACI Article number 12-7081-140-30-17-00
• 165 mm × 30 mm, thickness 17 mm — Product code 2071770 — ACI Article number 12-7081-165-30-17-00
• 190 mm × 30 mm, thickness 17 mm — Product code 2071771 — ACI Article number 12-7081-190-30-17-00
• 220 mm × 30 mm, thickness 17 mm — Product code 2071772 — ACI Article number 12-7081-220-30-17-00
• 250 mm × 30 mm, thickness 17 mm — Product code 2071773 — ACI Article number 12-7081-250-30-17-00
• 280 mm × 30 mm, thickness 17 mm — Product code 2071774 — ACI Article number 12-7081-280-30-17-00
• 320 mm × 30 mm, thickness 17 mm — Product code 2071775 — ACI Article number 12-7081-320-30-17-00
• 340 mm × 30 mm, thickness 17 mm — Product code 2071776 — ACI Article number 12-7081-340-30-17-00

Dimensions — Transparent glass (DIN 7081) — 34 mm width

• 95 mm × 34 mm, thickness 17 mm — MAXOS® Product code 2071817 — ACI Article number 12-7081-095-34-17-00
• 115 mm × 34 mm, thickness 17 mm — Product code 2071777 — ACI Article number 12-7081-115-34-17-00
• 140 mm × 34 mm, thickness 17 mm — Product code 2071778 — ACI Article number 12-7081-140-34-17-00
• 165 mm × 34 mm, thickness 17 mm — Product code 2071779 — ACI Article number 12-7081-165-34-17-00
• 190 mm × 34 mm, thickness 17 mm — Product code 2071780 — ACI Article number 12-7081-190-34-17-00
• 220 mm × 34 mm, thickness 17 mm — Product code 2071781 — ACI Article number 12-7081-220-34-17-00
• 250 mm × 34 mm, thickness 17 mm — Product code 2071782 — ACI Article number 12-7081-250-34-17-00
• 280 mm × 34 mm, thickness 17 mm — Product code 2071783 — ACI Article number 12-7081-280-34-17-00
• 300 mm × 34 mm, thickness 17 mm — Product code 2071784 — ACI Article number 12-7081-300-34-17-00
• 320 mm × 34 mm, thickness 17 mm — Product code 2071785 — ACI Article number 12-7081-320-34-17-00
• 340 mm × 34 mm, thickness 17 mm — Product code 2071786 — ACI Article number 12-7081-340-34-17-00
• 370 mm × 34 mm, thickness 17 mm — Product code 2071787 — ACI Article number 12-7081-370-34-17-00
• 400 mm × 34 mm, thickness 17 mm — Product code 2071788 — ACI Article number 12-7081-400-34-17-00
• 420 mm × 34 mm, thickness 17 mm — Product code 2071789 — ACI Article number 12-7081-420-34-17-00
• 430 mm × 34 mm, thickness 17 mm — Product code 2071790 — ACI Article number 12-7081-430-34-17-00
• 460 mm × 34 mm, thickness 17 mm — Product code 2071791 — ACI Article number 12-7081-460-34-17-00
• 480 mm × 34 mm, thickness 17 mm — Product code 2071792 — ACI Article number 12-7081-480-34-17-00
• 500 mm × 34 mm, thickness 17 mm — Product code 2071793 — ACI Article number 12-7081-500-34-17-00

Dimensions — Reflective glass (DIN 7081) — 30 mm width

• 115 mm × 30 mm, thickness 17 mm — MAXOS® Product code 2071675 — ACI Article number 12-7081-115-30-17-01
• 140 mm × 30 mm, thickness 17 mm — Product code 2071676 — ACI Article number 12-7081-140-30-17-01
• 165 mm × 30 mm, thickness 17 mm — Product code 2071677 — ACI Article number 12-7081-165-30-17-01
• 190 mm × 30 mm, thickness 17 mm — Product code 2071678 — ACI Article number 12-7081-190-30-17-01
• 220 mm × 30 mm, thickness 17 mm — Product code 2071679 — ACI Article number 12-7081-220-30-17-01
• 250 mm × 30 mm, thickness 17 mm — Product code 2071680 — ACI Article number 12-7081-250-30-17-01
• 280 mm × 30 mm, thickness 17 mm — Product code 2071681 — ACI Article number 12-7081-280-30-17-01
• 320 mm × 30 mm, thickness 17 mm — Product code 2071682 — ACI Article number 12-7081-320-30-17-01
• 340 mm × 30 mm, thickness 17 mm — Product code 2071683 — ACI Article number 12-7081-340-30-17-01

Dimensions — Reflective glass (DIN 7081) — 34 mm width

• 95 mm × 34 mm, thickness 17 mm — MAXOS® Product code 2071716 — ACI Article number 12-7081-095-34-17-01
• 115 mm × 34 mm, thickness 17 mm — Product code 2071684 — ACI Article number 12-7081-115-34-17-01
• 140 mm × 34 mm, thickness 17 mm — Product code 2071685 — ACI Article number 12-7081-140-34-17-01
• 165 mm × 34 mm, thickness 17 mm — Product code 2071686 — ACI Article number 12-7081-165-34-17-01
• 190 mm × 34 mm, thickness 17 mm — Product code 2071687 — ACI Article number 12-7081-190-34-17-01
• 220 mm × 34 mm, thickness 17 mm — Product code 2071688 — ACI Article number 12-7081-220-34-17-01
• 250 mm × 34 mm, thickness 17 mm — Product code 2071689 — ACI Article number 12-7081-250-34-17-01
• 280 mm × 34 mm, thickness 17 mm — Product code 2071690 — ACI Article number 12-7081-280-34-17-01
• 300 mm × 34 mm, thickness 17 mm — MAXOS® Product code 2071713 — ACI Article number 12-7081-300-34-17-01
• 320 mm × 34 mm, thickness 17 mm — Product code 2071691 — ACI Article number 12-7081-320-34-17-01
• 340 mm × 34 mm, thickness 17 mm — Product code 2071692 — ACI Article number 12-7081-340-34-17-01
• 370 mm × 34 mm, thickness 17 mm — Product code 2071693 — ACI Article number 12-7081-370-34-17-01
• 400 mm × 34 mm, thickness 17 mm — Product code 2071694 — ACI Article number 12-7081-400-34-17-01
• 430 mm × 34 mm, thickness 17 mm — Product code 2071695 — ACI Article number 12-7081-430-34-17-01
• 460 mm × 34 mm, thickness 17 mm — Product code 2071696 — ACI Article number 12-7081-460-34-17-01

Caractéristiques / spécifications techniques

• Material: Special borosilicate glass (MAXOS®)
• Design standard: DIN 7081
• Types: Transparent and reflective
• Thermal treatment: Thermally pre-stressed (hardened) for high thermal cycling resistance
• Chemical resistance: High (borosilicate)
• Purity & homogeneity: High optical purity and homogeneity
• Typical thicknesses: 17 mm (tables list available sizes); special thicknesses up to 55 mm on request
• Available coatings: FEP, Halar® (transparent rods only)
