Servo-press MS series
electricelectronicprocess

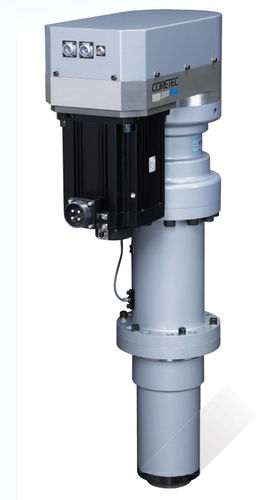

Servo-press - MS series - Acquati Group - electric / electronic / process

Servo-press - MS series - Acquati Group - electric / electronic / process - image - 2

Servo-press - MS series - Acquati Group - electric / electronic / process - image - 3

Servo-press - MS series - Acquati Group - electric / electronic / process - image - 4

Add to favorites

Compare this product

Go to the Acquati Group website for more information

Characteristics

Operation

electric, electronic

Function

process

Control

PLC-controlled, with integrated controller

Other characteristics

servo-driven, with stroke force monitoring

Force

Max.: 200 kN

Min.: 2 kN

Stroke

Max.: 500 mm
(19.685 in)

Min.: 100 mm
(3.937 in)

Working speed

Max.: 400 mm/s

Min.: 50 mm/s

Weight

Max.: 96 kg
(212 lb)

Min.: 4 kg
(9 lb)

Description

The MS Series is a high value-added model with large force, high load, and absolute specifications and is excellent in slow speed operation.

The middle mounting flange structure provides high rigidity despite its slimness.

Internal structure that allows pull operation (except MS200).

Equipped with a load cell amplifier with a built-in microprocessor.

Provided with tool ID function as well as a linearity correction function and tool operation history.
