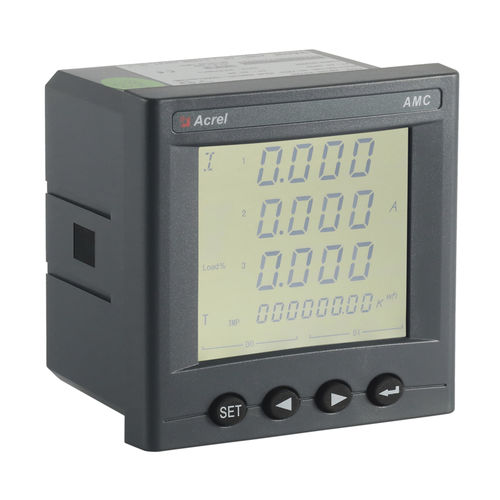

Voltage measuring device AMC96L-E4/KC

currentpowerpower factor

General AMC series AC multi-function meter is a smart meter designed for power monitoring needs of power systems, industrial and mining enterprises, utilities, and intelligent buildings. It integrates measurement of power parameters,such as single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency, power factor . AMC96L-E4/KC Multifunction Meter ● True RMS Measurements ● THD with 2-31st Harmonics ● Max/Min Log with Timestamp ● Internal Optional 4DI&2DO or 2DI&2DO&2AO ● Standard one Energy Pulse Output Function Accuracy Active energy: Class 0.5 Frequency Range: 45-65Hz Auxiliary power supply AC/DC 85~265V Pulse output 1600-160000imp/kWh Consumption Voltage: Power consumption <0.5VA; Current: Power consumption< 0.5VA; Auxiliary power supply:power consumption≤10VA
