Voltage protection relay AM seriescurrentmotorRS485
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- voltage, current
- Applications
- motor
- Communication
- RS485
- Norms
- IEC
- Other characteristics
- programmable
Description

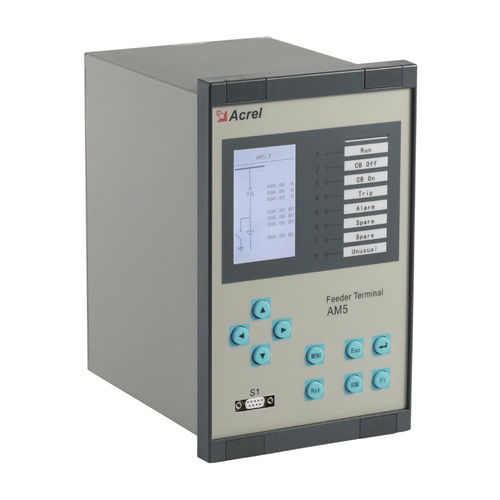

AM5 Series protection relay
● A complete set of protection, related to the application;
● 8 current input, 4 voltage input, 16 DI, 10 DO;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU;
● 1 RS232 for user update;
● 1 GPS for GPS timing;
● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;
● Powerful graphic programmable Logic.
Rich protection functions
Feeder protection; Transformer protection; Motor protection; Capacitor protection; Voltage protection; Bus tie protection.
Measurement
RMS current values; RMS voltage values; frequency; Power factor; RMS active power.
Control functions
Remote control; Local control; Programmable switchgear interlocking
