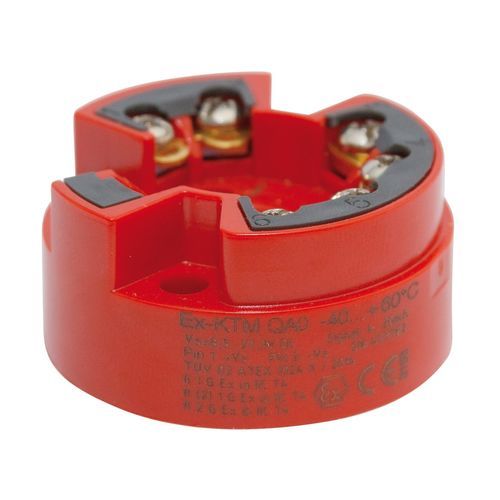

Probe head-mounted temperature transmitter TRANSCONT (EX)KTM

2-wire4-20 mAexplosion-proof

The temperature head transmitter Transcont KTM , for connection to a Pt100 resistance thermometer is a temperature signal converter for measuring, converting and monitoring temperatures in the range from -100 ° C to + 600 ° C with a measuring range between 20 Kelvin and 700 Kelvin. Thanks to the PNP switching output integrated in the 2-wire version (4 … 20 mA), separate evaluation devices can be dispensed with in many cases. Funktion The temperature head transmitter Transcont KTM can be installed in a connection head (form B) or in a field housing. A constant current is impressed from an integrated current source through a 2- or 3-wire Pt100 resistor built into the sensor. This current causes a voltage drop across the Pt100, which increases or decreases depending on the level of the medium temperature to be measured. The resistance-proportional voltage signal generated on the Pt100 is recorded by the transmitter, linearized and converted into a direct current signal of 4 … 20mA or a direct voltage signal of 0 … 10V. The voltage signal of the Pt100 is monitored and if the sensor breaks, failure information is provided via the 4 … 20 mA or 0 … 10V output signal. In this case, the output signal rises to 21.7 mA or 10.85 V. In the event of a sensor short-circuit, the signal drops to 3.55 mA or 0 V. With the temperature head transmitter in 2-wire technology with 4 … 20 mA, a freely adjustable, overload and short-circuit-proof PNP switching output using the open-circuit principle is optionally integrated.
