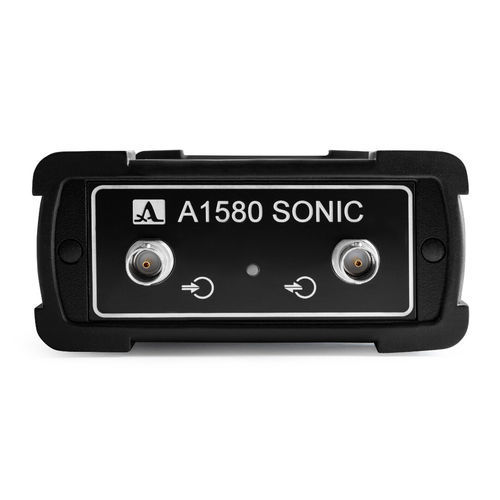

Ultrasound data acquisition system A1580 Sonic

soundfor ultrasonic NDTlaboratory

Overview
Universal OEM ultrasonic pulser-receiver front-end and broadband data acquisition unit for laboratory and industrial NDT and testing applications. Suitable for driving Dry-Point-Contact (DPC) and conventional piezoelectric transducers across a wide frequency range. Includes wireless data transfer capability and a documented SDK for integration and custom application development.

Applications

• Pulse velocity testing and sound speed measurements
• Pulse-echo data acquisition for flaw detection
• Position-synchronized data acquisition with inspection manipulators
• Time-synchronized acquisition with material test machines (tensile, compression)

Technical data (extracted table)
TRANSMITTER
Transmitter output voltage: 200 V
Excitation sequence: Meander, 0.5 to 8.0 periods
Pulse repetition rate: 1 – 3,500 Hz

RECEIVER
Data acquisition vector length: 128k samples
Sampling rates (MHz): 1, 10, 25, 50, 100
Filter frequencies (FIR): configurable
Receiving bandwidth: 10 kHz – 16 MHz
Amplifier dynamic range: 0 to 80 dB
Attenuator dynamic range: -20 to 0 dB
Gain setup range: 0 to 100 dB (1 dB step)
Programmable DAC points: 128k
DAC dynamic range: 40 dB
Averaging factor: 1 to 256

DIMENSIONS & WEIGHT
Electronic block dimensions: 116 × 56 × 230 mm
Electronic block weight: 0.9 kg
Operating temperature range: -20 to +45 °C

DATA INTERFACES
Wireless Ethernet: IEEE 802.11n (54 Mbit)
Ethernet: 100 Mbit
External trigger input: TTL

Delivery kit

• A1580 Sonic electronic unit (1)
• Power adapter with cable 220 V → 15 V (1)
• Ethernet cable 1.5 m (1)
• Wi‑Fi antenna (1)
• User manual for integration kit (SDK) (1)
• Introductory application software "ACS Mathilda" Windows GUI (1)

Documents
Product flyer (PDF) available for the A1580 Sonic.

Characteristics / Technical specifications

• Transmitter output: 200 V; excitation: meander 0.5–8.0 periods; pulse rate 1–3,500 Hz
• Receiving bandwidth 10 kHz–16 MHz; sampling rates up to 100 MHz; data vector length 128k samples
• Amplifier dynamic range 0–80 dB; attenuator -20–0 dB; gain adjustable 0–100 dB (1 dB step)
• Programmable DAC (128k points, 40 dB dynamic range); averaging factor 1–256
• Interfaces: Wireless IEEE802.11n and Ethernet 100 Mbit; external TTL trigger
• Compact electronic block 116 × 56 × 230 mm; weight 0.9 kg; operating -20 to +45 °C
• Includes SDK and introductory Windows GUI application for integration
