Ultrasound data acquisition system A1052

32-channelportablefor ultrasonic NDT

Overview

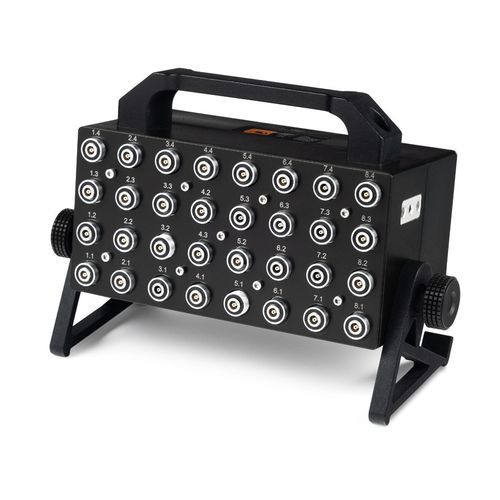

The A1052 MultiSONIC is a 32-channel ultrasonic data acquisition unit for stand-alone and integrated laboratory and industrial measurement and testing. The 32 individual transmitter and receiver channels are suitable for driving Dry-Point-Contact transducers. The instrument features exchangeable Li‑Ion batteries, a wireless data interface for measurements with a high on-off ratio, and a compact electronic block for portable use.

Software / SDK
A well-documented SDK enables development of custom inspection software. Free demo applications for smartphone, tablet and PC are available for download. An integration kit for user-side software development is available on request.

Applications

• Pulse velocity testing
• Pulse-echo data acquisition
• Position-synchronized acquisition with external inspection manipulators
• Time-synchronized acquisition with material testing machines (tensile, compression)

Delivery kit

• Electronic unit A1052 MultiSONIC with 32 channels — 1 pc
• Exchangeable Li‑Ion accumulator, inside the electronic unit — 6 pcs
• Power charger — 1 pc
• Power plugs (US/UK/EU) — 1 (for each)
• Power USB-C cable — 1 pc
• USB-A to USB-C cable — 1 pc
• Screwdriver Hex-Plus 2.0 — 1 pc
• Warranty certificate — 1 pc
• Operating Manual — 1 pc
• Free demo software for smartphone/tablet PC/PC — to be downloaded
• Integration kit for software development by the user — on request

Technical specifications

• TRANSMITTER — Number of transmitting channels: 32
• Transmitter output voltage: ±200 V (400 Vpp)
• Excitation sequence (periods): Meander, 0.5 to 5.0
• RECEIVER — Number of receiving channels: 32
• Data acquisition length: 128k samples
• Sampling rate: 1 MHz, 4 MHz
• Filter frequencies (FIR): HF 10, 20, 40, 100 kHz; LF 350 kHz
• Receiving bandwidth: 20 – 250 kHz
• Dynamic range of amplifier: 0 to 60 dB
• Dynamic range of DAC function: 40 dB
• Averaging factor: 1 to 256
• POWER SUPPLY — Power source: Exchangeable battery
• Operation time of the battery (min): 8 h
• Battery charging time: 2.5 h
• External power supply: DC 15 V, 4 A; AC 110–250 V
• DATA INTERFACES — Wireless Ethernet 54 Mbit; IEEE 802.11n (WiFi)
• DIMENSIONS & WEIGHT — Electronic block dimensions: 200 x 125 x 100 mm (7.9 x 4.9 x 3.9 inch)
• Weight of electronic block: 2.4 kg / 5.5 pounds
