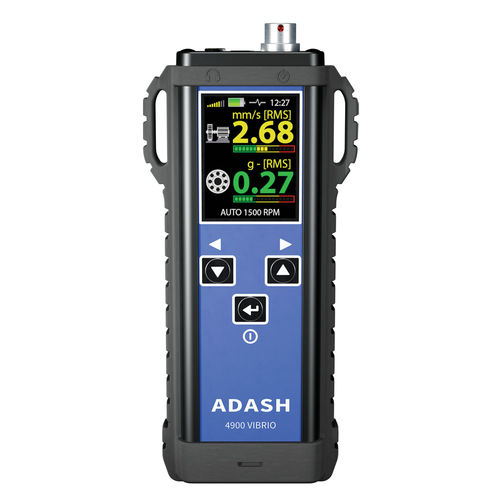

Machine monitoring vibration analyzer VIBRIO M

portabledigitalFFT

Vibration Meter, Analyzer and Data Collector in One Predictive Maintenance based on condition monitoring starts here. Expert System automatic machine fault detection Plug and Play don’t bother with settings, just measure FFT, Time Waveform Acceleration, Velocity, Displacement ISO 10816 standards 8 hours of operation IR thermometer Stethoscope Memory / USB-C communication LED Stroboscope VIBRIO M + FREE DDS SOFTWARE Free trending and data analysis software Heavy duty casing with rubber protection bumper LED flashlight Direct measurement from proximity probes (optionally) Unbreakable connector USB-C data transfer 3.5 Jack 3 buttons operation TFT sun readable display Li-Ion battery with 15 hours of continous operation Input: 1 x ICP® powered accelerometer Input range: 60 g PEAK with standard 100 mV/g sensor e.g. 600 g PEAK with 10 mV/g sensor (sensitivity is adjustable in the device) Measurements: Velocity RMS: 10 - 1 000 Hz [mm/s, ips] Velocity Peak: 10 - 1 000 Hz [mm/s, ips] Acceleration RMS: 500 - 16 kHz [g] Acceleration Peak: 500 - 16 kHz [g] Velocity time: 1 - 1 000 Hz [mm/s, ips], 2048 samples Velocity spectrum: 1 - 1 000 Hz [mm/s, ips], 800 lines Acceleration time: 1 - 16 kHz [g], 2048 samples* Acceleration spectrum: 1 - 16 kHz [g], 800 lines* Acceleration Demod-Envelope RMS: 500 - 16 kHz [g] Acceleration Demod-Envelope Peak: 500 - 16 kHz [g]* Acceleration Demod-Envelope time: 500 - 16 kHz [g], 2048 samples Acceleration Demod-Envelope spectrum: 500 - 16 kHz [g], 800 lines, range 400 Hz* Displacement RMS: 2 - 100 Hz [µm, mil] Displacement 0-Peak: 2 - 100 Hz [µm, mil] Displacement Peak-Peak: 2 - 100 Hz [µm, mil]
