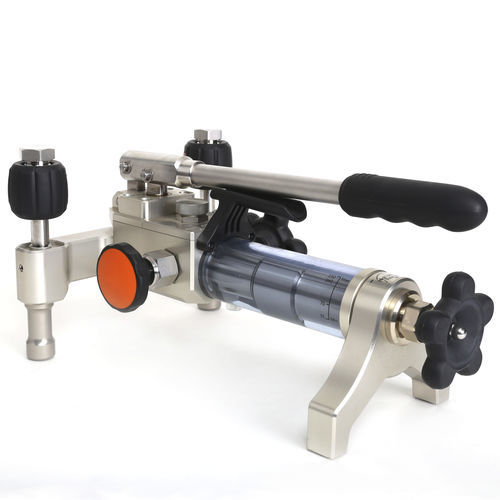

Hydraulic test pump 928A series

manualfor pressure generation

The Additel 928 Hydraulic Pressure Test Pump is a hand operated pressure pump designed to generate pressure to 15,000 psi (1,000bar). This pump incorporates a dual-piston system which is ideal for filling large volume workload with the hand pump and providing smooth increase and decrease of pressure with the fine adjustment. The Additel 928 Test hand pump incorporates an isolation valve which isolates the calibration volume from the check valve associated with the hand pump. Because the check valve can often be a source of leaks and maintenance, the isolation valve provides more stable measurements and reduces potential maintenance of the pump. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The Additel 928 is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers in the field or laboratory. Durable and minimal maintenance Isolation valve provides stable pressures while reducing maintenance on the hand pump check valve Easy to use 15,000 psi (1,000 bar) can be generated easily with the dual-piston system Hand-tight quick connectors Allows easy connection and disconnection to the test pump without the need for PTFE tape or wrenches
