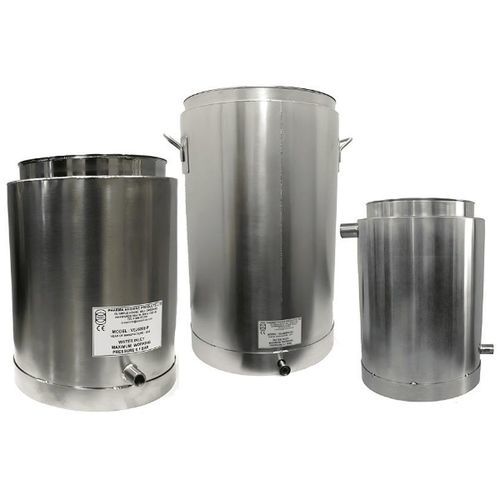

Stainless steel tank

polished stainless steeldouble-walledpressure-less

Product summary
Stainless steel water-jacketed vessels designed for controlled heating or cooling of liquids and formulations in pharmaceutical, laboratory and food processing environments.

Product details

• Construction
  Product-contact surfaces manufactured in 316L pharmaceutical-grade stainless steel; outer water jacket in 304 stainless steel rated for low-pressure operation (0.1 bar).
• Temperature control
  Designed for circulation of non-pressurised hot or cold water to provide uniform heating or cooling of stored or mixed products.
• Hygienic finish
  Fully polished, crevice- and pit-free interior surface to ensure cleanability and minimise contamination risk.
• Jacket connections
  Water inlet and outlet provided for smooth flow: ¼" BSP inlet at jacket base and ½" BSP outlet at jacket top.
• Documentation & traceability
  Supplied with full material traceability documentation; optional batch etching available.
• Customisation
  Standard capacities available and bespoke sizes, alternative fittings and additional certifications can be supplied on request.

Service & maintenance
Compatible with alcohol-based disinfectants, industrial dishwashers and autoclaves for routine cleaning and sterilisation.

How the water jacket works
The outer jacket permits non-pressurised hot or cold water to circulate around the vessel body for controlled heat transfer. Water enters via a ¼" BSP inlet at the base and exits through a ½" BSP outlet at the top. The jacket is specified as a 0.1 bar low-pressure system and must be used with non-pressurised supplies.

Materials

• Product-contact surfaces: 316L pharmaceutical-grade stainless steel
• Water jacket: 304 stainless steel (0.1 bar low-pressure)

Sizes
Standard capacities indicated on documentation range from 2 L to 50 L; full product range also referenced as 1 L to 100 L. Bespoke capacities can be manufactured on request.

Technical specifications

• Product name: Water Jacketed Vessels
• Material (product contact): 316L pharmaceutical-grade stainless steel
• Jacket material: 304 stainless steel (0.1 bar low-pressure)
• Jacket type: Low-pressure water jacket (0.1 bar)
• Water connections: ¼" BSP inlet (base); ½" BSP outlet (top)
• Intended jacket fluid: Non-pressurised hot or cold water
• Standard capacities (reported): 2 L to 50 L; alternative range 1 L to 100 L
• Finish: Polished, crevice- and pit-free interior
• Sterilisation compatibility: Alcohol-based disinfectants, industrial dishwashers, autoclaves
• Traceability: Full material documentation; optional batch etching
• Options: Alternative fittings and additional certifications available on request
