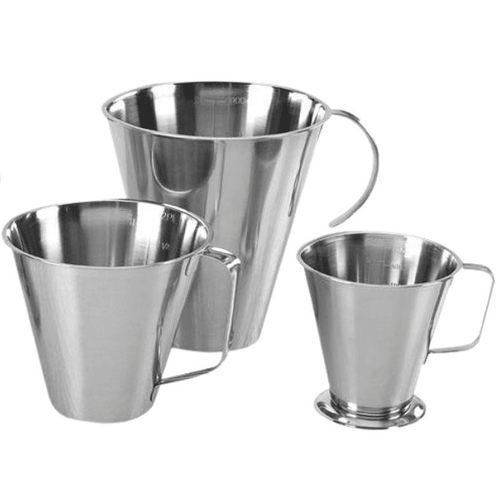

Graduated beaker

stainless steel

Overview
Light Duty Measuring Jugs are designed for accurate measuring, decanting and safe handling of liquids in pharmaceutical, food and laboratory environments. Manufactured from 304 pharmaceutical‑grade stainless steel with hygienic surface finishing.

Product details

• 304 pharmaceutical-grade stainless steel — Produced to meet international pharmaceutical and food industry quality and compliance requirements.
• Standard capacities from 0.1 L to 2 L — Practical size range for lab and production tasks; bespoke sizes available on request.
• Hygienic surface finish — Polished to an average surface roughness of ≤ 0.4 µm Ra to minimise bacterial retention and support validated cleaning procedures.
• Plain or graduated options — Supplied plain or with graduations for reproducible volume measurement; graduations provided on larger sizes where required.
• Supplied with lid and swing handle — Enables safe handling, easy transport and protection of contents during use or short-term storage.
• Reusable one-piece construction — Engineered for long service life and easy cleaning to support sustainable operations.
• Optional material traceability — Full material traceability and surface finish analysis certification available on request.

Service & Maintenance
Easy to clean and sterilise. Compatible with alcohol-based disinfectants, industrial dishwashers and autoclaves; surface supports validated cleaning and sterilisation processes.

FAQ — Key points

• What are they used for? — Accurate measuring, decanting and controlled transfer of liquids; ideal for batching, ingredient preparation, sampling and hygienic transfer in regulated production settings.
• What material are they made from? — 304 pharmaceutical-grade stainless steel providing corrosion resistance and compliance with pharma/food quality standards (316L available as an option in some markets).
• What sizes are available? — Standard capacities 0.1 L to 2 L; bespoke sizes can be supplied on request.
• Are graduations available? — Yes — plain or graduated formats; graduations applied to larger vessels to support repeatable batching.
• What surface finish do the jugs have? — Polished to ≤ 0.4 µm Ra to minimise bacterial retention and product build-up, facilitating validated cleaning.

Technical specifications (table)
Model — Capacity — Weight
Light Duty Measuring Jugs — 0.1 - 2 L — 0.04 - 0.320 kg

Characteristics / technical specifications

• Model: Light Duty Measuring Jugs
• Material: 304 pharmaceutical-grade stainless steel (316L optional)
• Capacity range: 0.1 L to 2 L (standard); bespoke sizes available
• Weight range: 0.04 kg to 0.320 kg (depending on size)
• Surface finish: Polished to ≤ 0.4 µm Ra
• Options: Plain or graduated formats (graduations on larger sizes)
• Supplied with: Lid and swing handle
• Design: One-piece, reusable and hygienic construction
• Cleaning & sterilisation: Compatible with alcohol-based disinfectants, industrial dishwashers and autoclaves
• Certification: Optional full material traceability and surface finish analysis available on request
