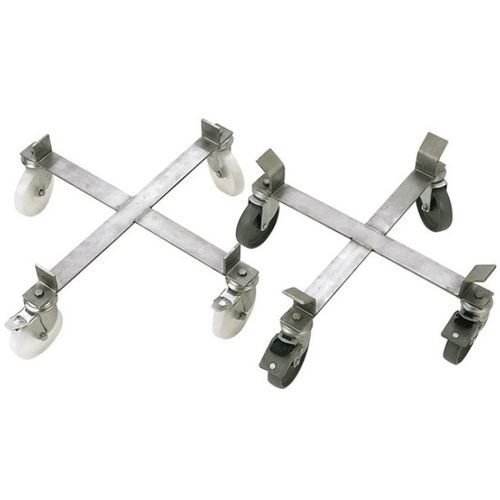

Transport frame

Overview
Stainless steel mobile transportation frames designed for safe, hygienic movement of vessels in regulated production and storage environments. Eliminates manual lifting, reduces handling risk and supports GMP/compliance requirements.

Product details

• Designed to suit vessels from 20L to 200L
  Compatible with common production, storage and decanting vessel sizes; frames are made to match a single vessel diameter on request.
• Safe, smooth vessel movement without lifting
  Enables transport of filled or heavy vessels while reducing manual handling and ergonomic risk.
• 304 grade stainless steel construction
  Provides corrosion resistance, hygienic smooth surfaces and long service life suitable for pharma and food environments.
• Supplied with four heavy duty castors
  Includes two braked castors to secure the frame during filling, mixing or transfer operations.
• Choice of locating flange design
  Straight or angled locating flange options to suit different vessel geometries and workflow requirements.
• Easy to clean & reusable
  Smooth, pit-free surfaces compatible with alcohol-based disinfectants (IPA/ethanol) and standard washdown procedures.
• Fast delivery available
  Lead-time options available for facilities needing rapid operational improvements.
• Full material traceability
  Optional material grade and surface finish certification provided to support international pharma and food compliance.

Service & Maintenance
Clean using IPA- or ethanol-based agents and standard washdown procedures. Inspect castors and brake function regularly; maintain smooth surfaces to support routine sanitation in inspection-controlled areas.

Technical table
Model: Mobile Transportation Frame
Suit vessel capacity: 20 - 200 L
Made to suit one diameter of vessel.

Characteristics / technical specifications

• Model: Mobile Transportation Frame
• Suitable vessel capacity: 20 - 200 L
• Construction material: 304 grade stainless steel
• Number of castors: Four heavy duty castors (two braked)
• Locating flange options: Straight locating flange or Angled locating flange
• Hygiene: Smooth surfaces for easy cleaning; compatible with alcohol-based disinfectants (IPA/ethanol) and standard washdown procedures
• Design: Made to suit one diameter of vessel (tailored to vessel diameter)
• Benefits: Eliminates manual lifting, reduces manual handling risk, improves ergonomics and site safety compliance
• Compliance support: Optional material grade and surface finish certification / full material traceability for pharma and food sectors
• Delivery: Fast delivery option available for immediate operational needs
