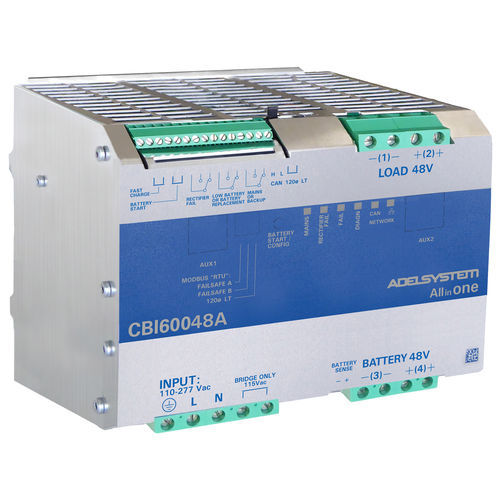

All-in-one UPS CBI60048A

single-phase48VDCVRLA

Overview
The CBI60W and CBI600W series are All‑In‑One DC-UPS units with integrated Ethernet (SNMPv3, Modbus TCP/IP, HTTPS) providing remote access to device, battery and application parameters for SCADA and IoT platforms.

Key features

• Power ratings up to 600 W and output voltages up to 56 V
• Integrated Ethernet interface with internal webserver for monitoring and configuration
• Protocols: SNMPv3, Modbus TCP/IP and HTTPS
• Designed for continuous 24/7 operation in surveillance, security and industrial automation
• Predictive diagnostics and battery fault reporting
• Multiple charging profiles supporting various battery chemistries

Models

• CBI6012A — 12 V, 5 A
• CBI6024A — 24 V, 2.5 A
• CBI6048A — 48 V, 1.25 A
• CBI60024A — 24 V, 25 A
• CBI60048A — 48 V, 12.5 A

Battery and charging
Microcontroller‑based switching optimizes charge/discharge cycles and prevents deep discharge. Configurable charging profiles are available for lead‑acid, AGM, GEL, NiCd, NiMh, Li‑Ion and LiFePO4. Features include battery‑specific profiles, temperature compensation, charging current limiter, deep discharge protection and a built‑in battery tester for connection, polarity, shorted cells and internal impedance checks. Battery health monitoring and fault reporting are provided.

Protection and reliability
Seamless transfer between battery and charger with no interruption. Automatic fuse‑free protection against reverse backup polarity, short circuit, overload and overvoltage. Engineered for continuous, reliable operation in critical applications.

Ethernet integration and remote monitoring
Ethernet interfaces (SNMPv3, Modbus TCP/IP, HTTPS) and an internal webserver allow remote access to device parameters via gateways, switches or IoT/SCADA systems. Management is possible via HTTP(S) or Adelview system interface for monitoring, configuration, data/event logging and alarm notifications.

Parameters available for monitoring

• AC input voltage
• DC output voltage, current, power and output status
• Battery voltage, current and internal resistance
• Network, device and battery fault alarms

Load output and relay configuration
The configurable load output can be controlled by web commands or external inputs. Typical functions: remote load disconnect, automatic load on at AC failure (emergency lighting), timed load activation, cyclic autonomous operation and external push‑button activation.

Relay contacts
Relay contacts are freely configurable for functions such as fault relay, AC grid relay, rectifier fault relay or acoustic alarm.

Datasheets and manuals (listed on product page)
Datasheets and user manuals are available per model (CBI6012A, CBI6024A, CBI6048A, CBI60024A, CBI60048A) and for the series.

Technical specifications

• Series: CBI60W, CBI600W (All In One DC-UPS)
• Power rating: up to 600 W
• Output voltages: 12 V, 24 V, 48 V (up to 56 V on some models)
• Example model outputs: CBI6012A (12 V, 5 A); CBI6024A (24 V, 2.5 A); CBI6048A (48 V, 1.25 A); CBI60024A (24 V, 25 A); CBI60048A (48 V, 12.5 A)
• AC input: 110–240–277 Vac
• Communication: Ethernet SNMP (SNMPv3), Modbus TCP/IP, HTTPS; internal webserver
• Monitoring: AC input, DC output (voltage/current/power/status), battery voltage/current/internal resistance, alarms
• Battery support: lead‑acid, AGM, GEL, NiCd, NiMh, Li‑Ion, LiFePO4
• Charging features: battery‑specific profiles, temperature compensation, charging current limiter
• Protection: fuse‑free reverse polarity, short circuit, overload, overvoltage protection; deep discharge protection
• Diagnostics: built‑in battery tester, health monitoring, predictive diagnostics, fault reporting
• Load control: configurable load output (remote/web/external), timed and cyclic modes
• Relay options: configurable fault/AC/rectifier/alarm relays
