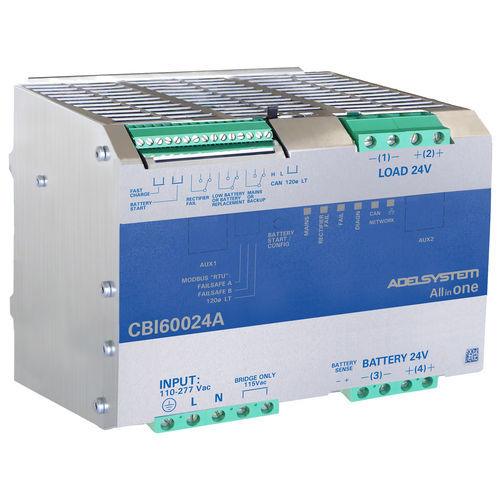

All-in-one UPS CBI60024A

single-phase24 VVRLA

Overview
The CBI60W and CBI600W series integrate power supply, backup module, battery charger and battery tester in a single All-in-One DC-UPS module. Integrated Ethernet (SNMPv3, Modbus TCP/IP and HTTPS) enables remote access to battery status, DC-UPS functions and application data for continuous operation of surveillance, security and industrial automation systems.

Key features

• Built-in Ethernet interface with internal webserver
• Protocols: SNMPv3, Modbus TCP/IP, HTTPS
• Web-based configuration and monitoring via Adelview or SCADA/IoT platforms
• Predictive diagnostics and battery fault reporting
• Microcontroller-controlled switching technology for optimized charging/discharging
• Seamless transfer between battery and charger without interruption
• Automatic fuse-free protection: reverse polarity, short circuit, overload and overvoltage

Models and ratings (summary)
All In One 12V series:
CBI6012A — Input: 110-240-277 Vac — Output: 5 A
All In One 24V series:
CBI6024A — Input: 110-240-277 Vac — Output: 2.5 A
CBI60024A — Input: 110-240-277 Vac — Output: 25 A
All In One 48V series:
CBI6048A — Input: 110-240-277 Vac — Output: 1.25 A
CBI60048A — Input: 110-240-277 Vac — Output: 12.5 A

Power and interface
Power ratings up to 600 W and output voltages up to 56 V. The Ethernet interface includes an internal webserver for direct access by device IP and supports full remote configuration, monitoring and data logging.

Battery support and management
Supported battery technologies:

• Lead-acid
• AGM
• GEL
• NiCd
• NiMh
• Li-Ion
• LiFePO4

Battery Care features:

• Battery-specific charging profiles
• Charge temperature compensation
• Deep discharge protection
• Charging current limiter
• Battery tester functions (connection, polarity, shorted cells, internal impedance)
• Battery health monitoring

Remote monitoring & data
Ethernet integration enables real-time transmission of operational parameters. Users can:

• Monitor parameters
• Configure parameters
• Record data and events
• Receive alarm notifications

Monitored parameters include AC input voltage; DC output/load voltage, current, power and status; battery voltage, current and internal resistance; and network/device/battery fault alarms.

Load output and relay configuration
The load output is fully configurable. Supported behaviors include:

• Turn off the load via webserver command or external button
• Turn on the load automatically when AC fails (useful for emergency lighting)
• Power the load for a defined period
• Cyclic operation: autonomous on/off according to configured timings
• Connect load activation to an external push button

Relay contacts are configurable (examples):

• Fault relay
• AC grid relay
• Rectifier fault relay
• Acoustic alarm

Protection & reliability
Microcontroller-based switching optimizes battery life and prevents deep discharge. Protection features include automatic fuse-free protections against reverse polarity, short circuits, overloads and overvoltage.

Datasheets & manuals
Datasheets and instruction manuals are available for listed models (product-specific datasheets/manuals exist for CBI6012A, CBI6024A, CBI6048A, CBI60024A and CBI60048A).

Technical specifications

• Series: CBI60W and CBI600W (All In One DC-UPS)
• Protocols: Ethernet SNMPv3, Modbus TCP/IP, HTTPS
• Internal webserver for configuration and monitoring
• Power range: up to 600 W
• Maximum output voltage: up to 56 V
• AC input: 110–240–277 Vac (depending on model)
• Output current examples: CBI6012A 5 A, CBI6024A 2.5 A, CBI6048A 1.25 A, CBI60024A 25 A, CBI60048A 12.5 A
• Supported battery chemistries: Lead-acid, AGM, GEL, NiCd, NiMh, Li-Ion, LiFePO4
• Battery management: temperature compensation, charge limiting, battery tester, battery health monitoring
• Protections: reverse polarity, short-circuit, overload, overvoltage (automatic fuse-free)
• Load control: remote/web control, timed/cyclic operation, external push-button activation
• Relay outputs: configurable for fault, AC grid, rectifier fault, acoustic alarm
• Remote capabilities: real-time parameter reporting, data/event logging, alarm notifications
